This item is Discontinued.

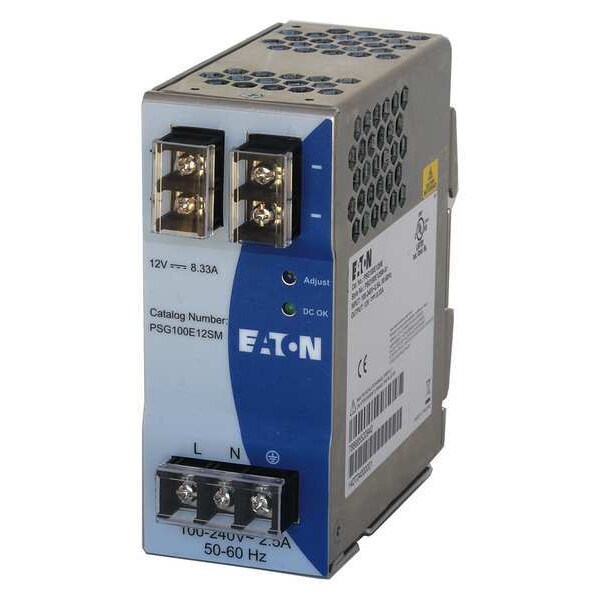

Eaton AC to DC Power Supply, 100/240V AC, 100 W, 8.3 A, DIN Rail PSG100E12SM

AC to DC Power Supply, 100/240V AC, 100 W, 8.3 A, DIN Rail (Discontinued)

  • Mfr # PSG100E12SM
  • Zoro # G8569321
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PSG100E12SM
Zoro #
G8569321
UPC #
786685520940
Country of Origin
Thailand

Dimensions

Depth
4.76 in
Width
1.97 in
Height
4.69 in

Details

Item
AC to DC Power Supply
Input Voltage
100/240V AC
Output Power - Rated
100 W
Current - Output
8.3 A
Mounting
DIN Rail
Housing Material
Metal
Output Amps
8.30A
IP Rating
IP20
Output Voltage
12V DC
Hold Up Time
Greater Than 22 msec
Status Indicator
LED/DC OK Signal
Peak Amps
12.49
Output Noise
Less Than 50mV
Operating Temp. Range
-20 to 80°C
Style
Switching
Hz
50/60 Hz
Features
Din Rail Mounting, Industrial Power Supply, Low Output Noise, Overvoltage And Short Circuit Protection, Screw Terminal Connections, Ultra Slim Footprint
Standards
CE, CSA, cUL, cULus/UL 60950-1, EN, German Safety, IEC, RoHS, UL 508
Phase - Electrical
Single
Series
PSG
Power Rating
100W
Case Material
Aluminum Case
Connection
Screw
Terminals
Heavy-duty screw
Special Features
Varistor Transient Surge Voltage
Certifications
UL 508;EN Listed;cUL Certified;CSA Certified;IEC Rated;cULus/UL 60950-1
Compliances
German Safety;CE Marked
Manufacturer Warranty
1 yr Installation, 18 mo Shipment
NEMA Enclosure Rating
1
Operating Temperature - Minimum
-4 Degrees F
Operating Temperature - Maximum
167 Degrees F
Input Frequency - Nominal
50/60 Hz
Wire Connection Type
Screw Terminals
Current - Peak
12.49 A

Description

DC Power Supply, Input Voltage 100 to 240V AC, Output Voltage 12V DC, Power Rating 100W, Output Amps 8.30, Mounting DIN Rail, Switching, Case Material Aluminum Case, Height 4.69 in, Width 1.97 in, Depth 4.76 in, Series PSG, Hz 50 to 60 Hz, Phase - Electrical Single, Peak Amps 12.49, IP Rating IP20, Output Noise Less Than 50mV, Hold Up Time Greater Than 22 msec, Status Indicator LED/DC OK Signal, NEMA Rating 1
