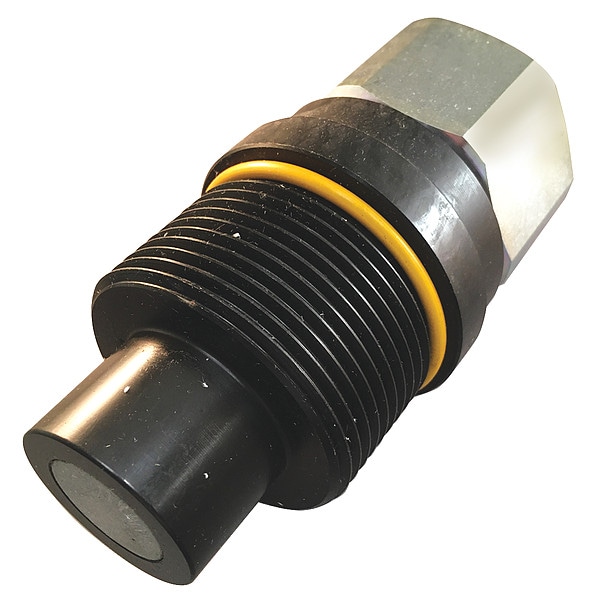

Eaton Aeroquip Hydraulic Quick Connect Hose Coupling, Steel Body, Push-to-Connect Lock, 1/2"-14 Thread Size FD96-1002-08-08 - main

Hydraulic Quick Connect Hose Coupling, Steel Body, Push-to-Connect Lock, 1/2"-14 Thread Size

  • Mfr # FD96-1002-08-08

  • Zoro # G0611162

product price:  $260.99
/ea
Free Shipping & Returns

Key Features

Body Material
Steel
Seal Material
Nitrile, PTFE
Coupling Locking Type
Push-to-Connect
Max. Pressure
7,980 psi
Thread Size
1/2"-14
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FD96-1002-08-08
Zoro #
G0611162
UPC #
-
Country of Origin
United States

Dimensions

Thread Size
1/2"-14
Length
3-3/4"
Overall Length
3 3/4 in
Coupler Body Size
1/2 in
Coupler Thread Size
1/2 in to 14
Coupling Size
1/2 in

Details

Item
Hydraulic Quick Connect Hose Coupling
Body Material
Steel
Seal Material
Nitrile, PTFE
Coupling Locking Type
Push-to-Connect
Max. Pressure
7,980 psi
Connection Type
NPT
Shut Off
Double
For Use With
FD96 Series Couplers
Sleeve Material
Steel
Series
FD96
Coupler Interchange Type
EA
Valve Design
Flush Face
Locking Mechanism
Threaded
Coupler Finish
Trivalent Chromium Zinc
Coupler Flow Rate
12 gpm
Coupler Connection Type
FNPT
Bearing Material
Stainless Steel
Coupler Body Material
Steel
Seal Type
Ball and O-Ring
Operating Temp. Range
-40 Degrees to 250 Degrees F
Maximum Vacuum
28 in Hg
Coupling Component
Plug
Fitting Type
FNPT
Valve Type
Flush Face
Max. Working Pressure @ 70 F
7,980 psi
Includes Valve
Yes
Includes Shut Off
Yes
Max. Flow Rate
45.42 lpm
Includes Bearing
Yes
Finish/Coating
Trivalent Chromium Zinc
Hose Fitting Gender
Female
Pull Ring Material
PTFE

Description

Hydraulic Quick Connect Hose Coupling, Plug, FD96 Series, Steel, Coupling Size 1/2 in, Female, Max. Working Pressure @ 70 F 7,980 psi, Max. Flow Rate 45.42 lpm
