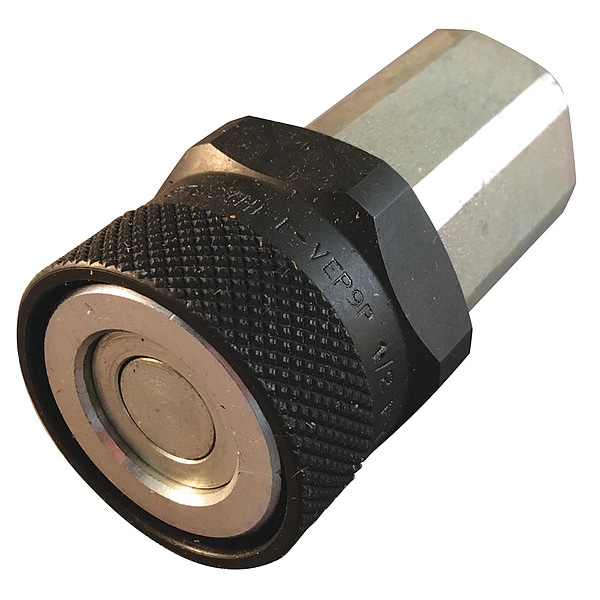

Eaton Aeroquip Hydraulic Quick Connect Hose Coupling, Steel Body, Push-to-Connect Lock, 3/4"-16 Thread Size FD96-1004-08-06 - main

Hydraulic Quick Connect Hose Coupling, Steel Body, Push-to-Connect Lock, 3/4"-16 Thread Size

  • Mfr # FD96-1004-08-06

  • Zoro # G0681424

product price:  $207.99
/ea
Free Shipping & Returns

Key Features

Body Material
Steel
Seal Material
Nitrile, PTFE
Coupling Locking Type
Push-to-Connect
Max. Pressure
7,980 psi
Thread Size
3/4"-16
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FD96-1004-08-06
Zoro #
G0681424
UPC #
-
Country of Origin
United States

Dimensions

Thread Size
3/4"-16
Length
2-51/64"
Coupler Body Size
3/8 in
Coupler Thread Size
3/4 in to 16
Overall Length
2 13/16 in
Coupling Size
3/8 in

Details

Item
Hydraulic Quick Connect Hose Coupling
Body Material
Steel
Seal Material
Nitrile, PTFE
Coupling Locking Type
Push-to-Connect
Max. Pressure
7,980 psi
Connection Type
SAE
Shut Off
Double
For Use With
FD96 Series Plugs
Sleeve Material
Steel
Series
FD96
Locking Mechanism
Threaded
Valve Design
Flush Face
Coupler Connection Type
FSAE
Coupler Body Material
Steel
Operating Temp. Range
-40 Degrees to 250 Degrees F
Seal Type
Ball and O-Ring
Coupler Interchange Type
EA
Coupler Finish
Trivalent Chromium Zinc
Bearing Material
Stainless Steel
Coupler Flow Rate
6 gpm
Includes Shut Off
Yes
Valve Type
Flush Face
Maximum Vacuum
28 in Hg
Includes Valve
Yes
Max. Working Pressure @ 70 F
7,980 psi
Max. Flow Rate
22.71 lpm
Hose Fitting Gender
Female
Coupling Component
Socket
Fitting Type
FSAE
Includes Bearing
Yes
Finish/Coating
Trivalent Chromium Zinc
Pull Ring Material
PTFE

Description

Hydraulic Quick Connect Hose Coupling, Socket, FD96 Series, Steel, Coupling Size 3/8 in, Female, Max. Working Pressure @ 70 F 7,980 psi, Max. Flow Rate 22.71 lpm
