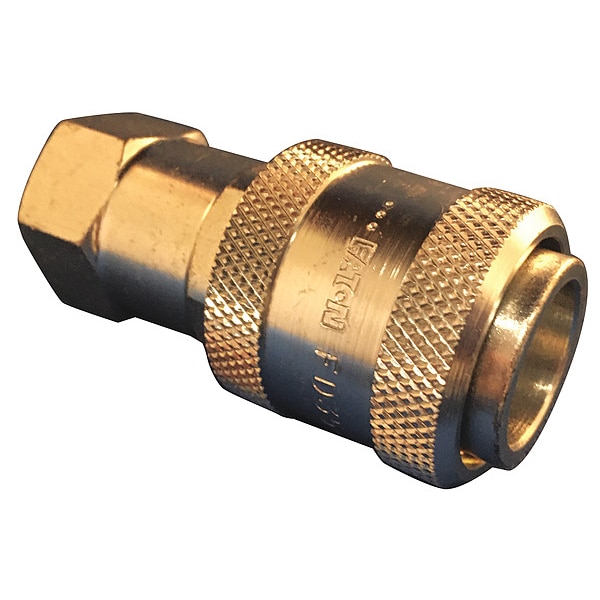

Eaton Aeroquip Hydraulic Quick Connect Hose Coupling, Steel Body, Push-to-Connect Lock, 9/16"-18 Thread Size FD35-1007-06-06 - main

Hydraulic Quick Connect Hose Coupling, Steel Body, Push-to-Connect Lock, 9/16"-18 Thread Size

  • Mfr # FD35-1007-06-06

  • Zoro # G0611178

product price:  $81.19
/ea
Free Shipping & Returns

Key Features

Coupler Interchange Type
HTMA
Connection Type
SAE
Coupler Thread Size
9/16"-18
Seal Material
Fluorocarbon
Coupler Body Size
3/8"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FD35-1007-06-06
Zoro #
G0611178
UPC #
-
Country of Origin
United States

Dimensions

Coupler Thread Size
9/16"-18
Coupler Body Size
3/8"
Length
2-9/16"
Thread Size
9/16"-18
Overall Length
2 9/16 in
Coupling Size
3/8 in

Details

Item
Hydraulic Quick Connect Hose Coupling
Coupler Interchange Type
HTMA
Connection Type
SAE
Seal Material
Fluorocarbon
Coupler Flow Rate
2.0 gpm
Max. Pressure
10,000 psi
Coupler Body Material
Carbon Steel
Sleeve Material
Carbon Steel
Coupler Finish
Trivalent Chromium Zinc
Shut Off
Double
Series
FD35
For Use With
FD35 Series Plugs
Body Material
Steel
Coupling Locking Type
Push-to-Connect
Includes
Sleeve Lock
Coupler Connection Type
FSAE
Operating Temp. Range
-4 Degrees to 392 Degrees F
Locking Mechanism
Push and Pull
Valve Design
Poppet
Seal Type
Ball and O-Ring
Bearing Material
Stainless Steel
Finish/Coating
Trivalent Chromium Zinc
Includes Shut Off
Yes
Coupling Component
Socket
Pull Ring Material
PTFE
Max. Working Pressure @ 70 F
10,000 psi
Max. Flow Rate
7.57 lpm
Fitting Type
FSAE
Hose Fitting Gender
Female
Valve Type
Poppet
Includes Valve
Yes
Maximum Vacuum
28 in Hg
Includes Bearing
Yes

Description

Hydraulic Quick Connect Hose Coupling, Socket, FD35 Series, Steel, Coupling Size 3/8 in, Female, Max. Working Pressure @ 70 F 10,000 psi, Max. Flow Rate 7.57 lpm
