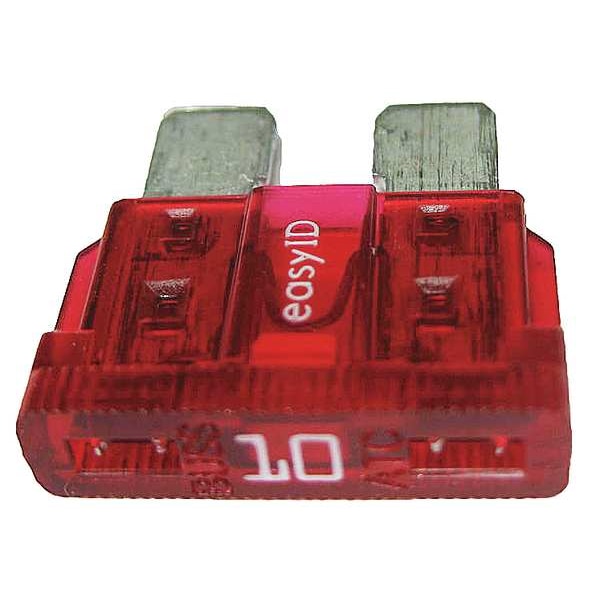

Automotive Fuse, 10A, 2 PK
Mfr # BP/ATC-10ID
Zoro # G1266011
CAD Available
product price: $7.39
/pk 2, $3.70/eaKey Features
CAD Drawing
Series
ATC-ID
Speed
Fast-Acting
DC Voltage Rating
32V DC
AC Voltage Rating
Not Rated
Visual Indication
Indicating
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
BP/ATC-10ID
Zoro #
G1266011
UPC #
051712237833
Country of Origin
Taiwan, Province of China
Dimensions
Length
3/4 in
Width
3/4 in
Depth
13/64 in
Overall Length
3/4 in
Overall Width
3/4 in
Overall Depth
3/16 in
Description
Automotive Fuse, 10 A, Indicating, ATC-ID Series, Not Applicable, 32 V DC, Fast-Acting, Body Material Plastic, Non-Rejection, Body Style Blade, Interrupt Rating 1kA at 32V DC, Color Code Red, Fuse Size 3/4 in L x 3/4 in W x 13/64 in D, Length 3/4 in, Width 3/4 in, Depth 13/64 in, Equivalent Brand and Series Bussmann ATC-ID, Equivalent Series ATC-ID, Single Element, Standards UL Recognized Guide JFHR2, File E56412, Compatible Fuse Block Series 15600, ATC, BP, HHC, HHD, HHF, HHG
