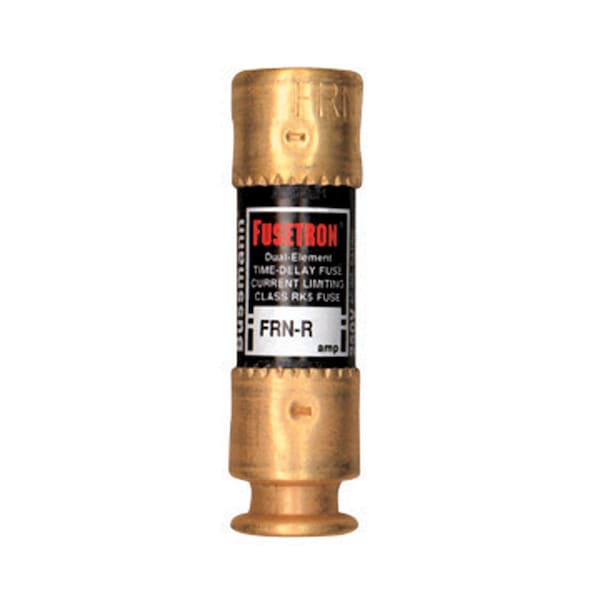

Bussmann 50 amps Dual Element Time Delay Fuse 2 pk

  • Mfr # BP/FRN-R-50
  • Zoro # G8626260
product price:
$
27.99
/ea

Key Features

Features
Provides motor overload, ground fault and short circuit protection; Helps protect motors against burnout from overloads; Helps protect motors against burnout from 1-phase on 3-phase systems; Simplifies and improves blackout prevention; Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high-performance, short circuit and overload protection; The overload element provides protection against low level overcurrent of overloads
Material
Paper
Height
1 in
Diameter
13/16 in
Voltage
250V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BP/FRN-R-50
Zoro #
G8626260
UPC #
51712112086
Country of Origin
Mexico

Dimensions

Height
1 in
Diameter
13/16 in
Length
3 in
Width
2-3/4 in
Overall Depth (In.)
5-1/2 in

Details

Item
Dual Element Time Delay Fuse
Features
Provides motor overload, ground fault and short circuit protection; Helps protect motors against burnout from overloads; Helps protect motors against burnout from 1-phase on 3-phase systems; Simplifies and improves blackout prevention; Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high-performance, short circuit and overload protection; The overload element provides protection against low level overcurrent of overloads
Material
Paper
Voltage
250V
Standards
CSA Listed, UL Listed
Class
R
Indicator Type
Non-Indicating
Endcap Material
Ferrule
Element
Dual
Number of Pieces
2
Rejection/Non-Rejection
Rejection
Tube Material
Fiberglass
Terminal Type
Ferrule Holder
Fuse Type
FRN-R Cartridge
Amperage
50 A
Interrupt Rating
200 kA
For Use With
Power

Description

The Cooper Bussmann FRN series 50 amp Brass Time-Delay Cartridge Fuses feature dual elements with time delays and are current limiting at 10 seconds (minimum) at 500 percent rated amp. The UL-listed cartridges are designed for use in power panel-boards, motor-control centers, combination starters and machinery disconnects.


  • • For use in power panel-boards, motor-control centers, combination starters and machinery disconnects
  • • Class RK5
  • • Current limiting 10 seconds (minimum) at 500 percent rated amp s
  • • Dual element with time delay
  • • 250 volt
  • • Fiberglass tube

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
