Shop EATON BUSSMANN

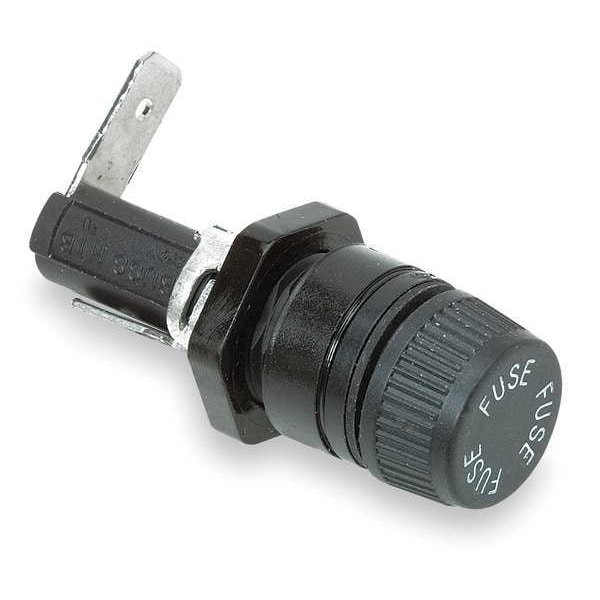

Fuse Holder, 0 to 20A Amp Range, 250V AC/DC Volt Rating, 1 Poles, Quick Connect

  • Mfr # HTB-48I-R

  • Zoro # G3199603

product price:
$
10.59
/ea

Key Features

Series
HTB
Number of Poles
1
Amp Range
0 to 20A
Voltage Rating
250V AC/DC
Connector Type
Quick Connect
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HTB-48I-R
Zoro #
G3199603
UPC #
051712659598
Country of Origin
Mexico

Dimensions

Panel Thickness
1/8"
Length
1/4 in
Width
1/4 in
Height
1-1/4 in
For Fuse Size
1-1/4 in L x 1/4 in dia
Diameter
0.25 in
Mounting Hole Dia.
29/64 in
For Fuse Diameter
1/4 in
For Fuse Length
1 1/4 in
Overall Diameter
0.25 in
Overall Length
0.25 in
Wire Rope Length
0.25 in

Details

Item
Fuse Holder
Series
HTB
Number of Poles
1
Amp Range
0 to 20A
Voltage Rating
250V AC/DC
Connector Type
Quick Connect
Mounting Style
Panel
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Body Material
Thermoplastic
Fuse Block or Fuse Holder Type
Fuse Holder
Fuse UL Class
Not Class Rated
For Fuse Series
ABC, AGC, AGX, MDA, MDL, MDM, MDQ, TFF, TFL, TGH
Fuse Holder Code
G
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Fuse Type
Glass and Ceramic
Fuse Cap Style
Screw Knob
Fits Fuse Type
Ceramic, Glass
Max. Amps
20A
Max. Voltage
250V AC/DC
Fits Fuse Block Style
Non-Rejection
Fuse Block or Holder AC Voltage Rating
250VAC
Mounting Hole
1/2 in x 29/64 in dia
Fuse Block or Holder DC Voltage Rating
125VDC
AC Voltage Rating
250 V AC
Current - Maximum
20 A
DC Voltage Rating
125 V DC
Current - Minimum
0 A

Description

Panel Mount Fuse Holder, Fits Fuse Type Ceramic, Glass, Fuse UL Class Not Class Rated, 0 to 20 A, Number of Poles 1, 250V AC/125V DC, For Fuse Size 1 1/4 in L x 1/4 in Dia., Compatible Fuse Series 311, 312, 313, 314, 315, 322, 326, 3AG, ABC, ACG, GAB, GBB, GDL, GDV, GGC, GSA, MDA, MDL, MDQ, MDV, MDX, MMB, Series HTB, Non-Indicating, Non-Rejection, Fuse Cap Style Screw Knob, Mounting Style Panel, Mounting Hole 1/2 in x 29/64 in dia, Body Material Thermoplastic
