Shop EATON BUSSMANN

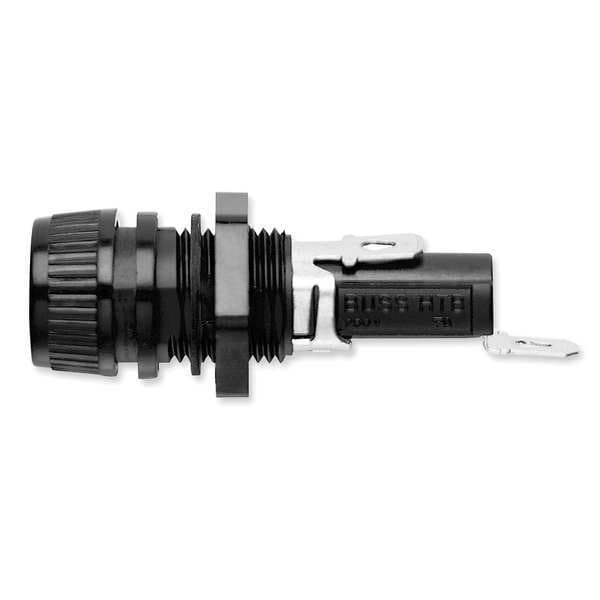

Fuse Holder, 0 to 20A Amp Range, 250V AC/DC Volt Rating, 1 Poles, Quick Connect

  • Mfr # HTB-66I-R

  • Zoro # G2445466

product price:  $13.15
/ea

Key Features

Series
HTB
Number of Poles
1
Amp Range
0 to 20A
Voltage Rating
250V AC/DC
Connector Type
Quick Connect
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HTB-66I-R
Zoro #
G2445466
UPC #
051712659697
Country of Origin
Philippines

Dimensions

Height
1-1/4 in
Length
1/4 in
Panel Thickness
19/64"
Width
1/4 in
For Fuse Size
1-1/4 in L x 1/4 in dia
Mounting Hole Dia.
15/32 in
For Fuse Length
1 1/4 in
For Fuse Diameter
1/4 in
Overall Length
0.25 in

Details

Item
Fuse Holder
Series
HTB
Number of Poles
1
Amp Range
0 to 20A
Voltage Rating
250V AC/DC
Connector Type
Quick Connect
Mounting Style
Panel
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Fuse UL Class
Not Class Rated
Fuse Type
Glass and Ceramic
Fuse Block or Fuse Holder Type
Fuse Holder
For Fuse Series
ABC, AGC, AGX, MDA, MDL, MDM, MDQ, TFF, TFL, TGH
Features
Flame Retardant
Fits Fuse Type
Glass and Ceramic
Fuse Cap Style
Screw Knob
Max. Voltage
250V AC/DC
For Fuse Class
Not Class Rated
Fits Fuse Block Style
Non-Rejection
Max. Amps
20A
Fuse Block or Holder DC Voltage Rating
125VDC
Fuse Block or Holder AC Voltage Rating
250VAC
Mounting Hole
1/2 in x 15/32 in dia
DC Voltage Rating
125 V DC
Current - Minimum
0 A
AC Voltage Rating
250 V AC
Current - Maximum
20 A

Description

Panel Mount Fuse Holder, Fits Fuse Type Glass and Ceramic, Fuse UL Class Not Class Rated, 0 to 20 A, Number of Poles 1, 250V AC/125V DC, For Fuse Size 1-1/4 in L x 1/4 in dia, Compatible Fuse Series 311, 312, 313, 314, 315, 322, 326, 3AG, ABC, ACG, GAB, GBB, GDL, GDV, GGC, GSA, MDA, MDL, MDQ, MDV, MDX, MMB, Series HTB, Non-Indicating, Non-Rejection, Fuse Cap Style Screw Knob, Mounting Style Panel, Mounting Hole 1/2 in x 15/32 in dia, Connector Type 1/4 in Quick Connect, Length 0.25 in
