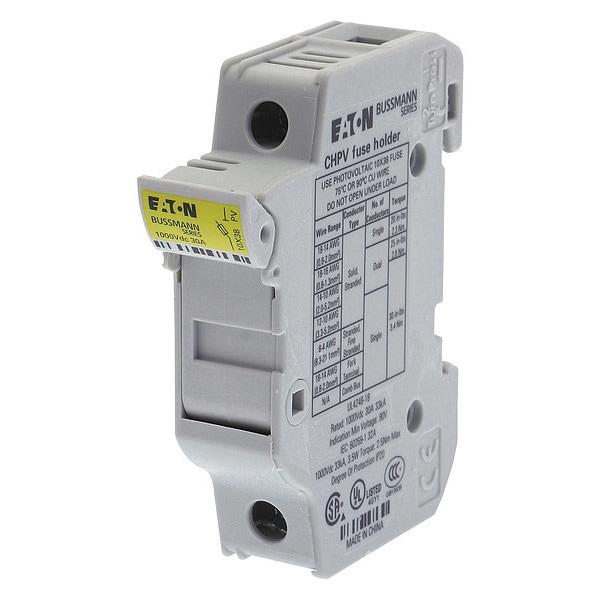

Fuse Holder, 0 to 30A Amp Range, 1000V DC Volt Rating, 1 Poles, Clamp/Spade Lug
Mfr # CHPV1U
Zoro # G1923028
product price:Â
$
29.69
/ea
Key Features
Series
CHPV
Amp Range
0 to 30A
Voltage Rating
1000V DC
Connector Type
Clamp/Spade Lug
Mounting Style
DIN-Rail
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CHPV1U
- Zoro #
- G1923028
- UPC #
- 051712362719
- Country of Origin
- China
Dimensions
- Wire Size
- 18 to 4 AWG
- Width
- 0.69 in
- Height
- 2.43 in
- Length
- 2.91 in
- For Fuse Size
- 1-1/2 in L x 13/32 in dia
- Wire Size - Maximum
- 4 AWG
- For Fuse Diameter
- 10 mm
- For Fuse Length
- 38 mm
- Wire Size - Minimum
- 18 AWG
- Overall Width
- 0.69 in
- Overall Length
- 2.91 in
- Overall Height
- 2.43 in
- Wire Rope Length
- 2.91 in
Description
Fuse Block, Fits Fuse Type Solar, Fuse UL Class Not Class Rated, 0 to 30 A, Number of Poles 1, 1000V DC, For Fuse Size 1-1/2 in L x 13/32 in dia, Compatible Fuse Series HP10M, PV-F, SPF, SPFS, Series CHPV, Non-Indicating, Non-Rejection, Fuse Block Design Finger-Safe, Wire Range 18 to 4 AWG, Mounting Style DIN Rail, Body Material Thermoplastic, Connector Type Box Lug, Height 2.43 in, Width 0.69 in, Length 2.91 in, Standards CE, CSA Certified, UL Listed
