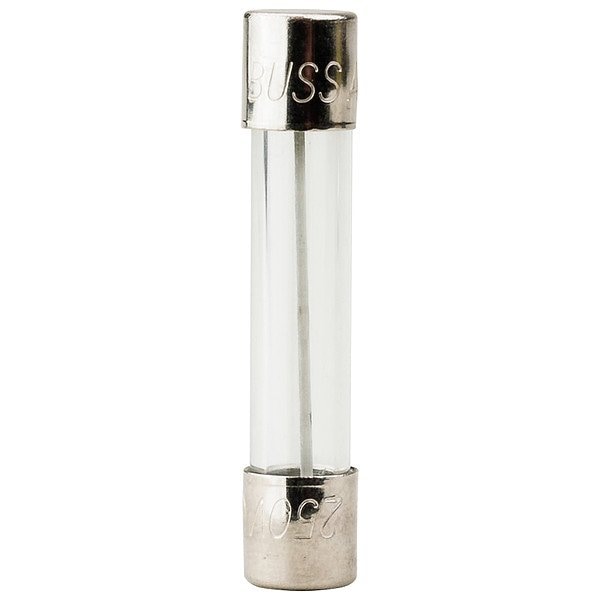

Glass Fuse, AGC Series, Fast-Acting, 10A, 250V AC, Non-Indicating, 100 PK
Mfr # BK/AGC-10-R
Zoro # G804217748
product price:Â $163.99
/pk 100, $1.64/ea
Free Shipping & Returns
Key Features
Series
AGC
Speed
Fast-Acting
Amps
10A
AC Voltage Rating
250V AC
Visual Indication
Non-Indicating
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- BK/AGC-10-R
- Zoro #
- G804217748
- UPC #
- 051712656184
- Country of Origin
- Taiwan, Province of China
Dimensions
- Diameter
- 1/4 in
- Length
- 1-1/4 in
- Cap Diameter
- 6.76 mm
- Overall Length
- 1 1/4 in
- Overall Diameter
- 1/4 in
Details
- Series
- AGC
- Speed
- Fast-Acting
- Amps
- 10A
- AC Voltage Rating
- 250V AC
- Visual Indication
- Non-Indicating
- Interrupt Rating
- 10kA at 125V AC, 200A at 250V AC
- Body Style
- Cylindrical
- Body Material
- Glass
- Equivalent Brand and Series
- Bussmann AGC, Littelfuse 312
- Compatible Fuse Block Series
- 1A1907, HB, HFA, HHB, HKP, HRK, HTB, S-8000
- Fits Fuse Block Style
- Nonrejection
- DC Voltage Rating
- 32V DC
- Item
- Glass Fuse
- Equivalent Series
- 311, 312, 3AG, AGC, GGC, MMB
- Standards
- 1422--01, CSA Certified Class No. 1422-30, RoHS Compliant, UL Listed 248-14, UL Listed File E19180 Guide JDYX
- Interrupt Rating - AC
- 200 A
- Current
- 10 A
Description
Fuse, 10 A, 250 V AC, Not Applicable, AGC Series, Glass Fuse, Fast-Acting, Body Style Cylindrical, Non-Rejection, Interrupt Rating 200 A at 250V AC, Fuse Size 32.00 mm L x 6.30 mm dia, Length 32 mm, Diameter 6 3/10 mm, Equivalent Brand and Series Bussmann AGC, Littelfuse 312, Equivalent Series 311, 312, 3AG, AGC, GGC, MMB, Body Material Glass, Compatible Fuse Block Series 1A1907, HB, HFA, HHB, HKP, HRK, HTB, S-8000, Cap Diameter 6.76 mm
