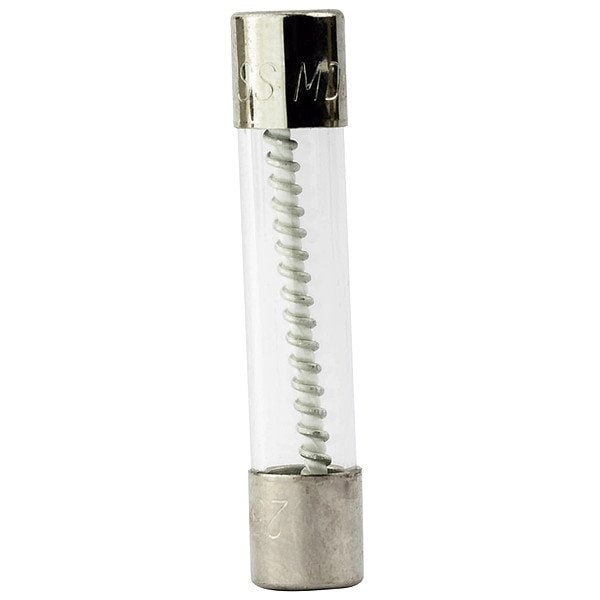

Glass Fuse, MDL Series, Time-Delay, 3A, 250V AC, Non-Indicating, 100 PK
Mfr # BK/MDL-3-R
Zoro # G504217765
product price:Â $314.99
/pk 100, $3.15/ea
Free Shipping & Returns
Key Features
Series
MDL
Speed
Time-Delay
Amps
3A
AC Voltage Rating
250V AC
Visual Indication
Non-Indicating
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BK/MDL-3-R
- Zoro #
- G504217765
- UPC #
- 051712653022
- Country of Origin
- Taiwan, Province of China
Dimensions
- Diameter
- 6.35 mm
- Length
- 31.70 mm
- Cap Diameter
- 6.76 mm
- Overall Diameter
- 1/4 in
- Overall Length
- 1 1/4 in
- Wire Rope Length
- 1 1/4 in
Details
- Series
- MDL
- Speed
- Time-Delay
- Amps
- 3A
- AC Voltage Rating
- 250V AC
- Visual Indication
- Non-Indicating
- Interrupt Rating
- 100A at 250V AC, 10kA at 125V AC
- Body Style
- Cylindrical
- Body Material
- Glass
- Equivalent Brand and Series
- Bussmann MDL, Littelfuse 313
- Compatible Fuse Block Series
- 1A1907, HB, HFA, HHB, HKP, HRK, HTB, S-8000
- Fits Fuse Block Style
- Non-Rejection
- DC Voltage Rating
- 32V DC
- Item
- Glass Fuse
- Standards
- CE, CSA Certified Class No. 1422-01, UL Listed 248-14, UL Listed Guide JDYX File E19180
- Equivalent Series
- 313, 315, GDL, GDV, MDL, MDQ, MDV, MDX
- Current
- 3 A
- Interrupt Rating - AC
- 100 A
Description
Fuse, 3 A, 250 V AC, Not Applicable, MDL Series, Glass Fuse, Time-Delay, Body Style Cylindrical, Non-Rejection, Interrupt Rating 100 A at 250V AC, Fuse Size 31.70 mm L x 6.40 mm dia, Length 31 7/10 mm, Diameter 6 2/5 mm, Equivalent Brand and Series Bussmann MDL, Littelfuse 313, Equivalent Series 313, 315, GDL, GDV, MDL, MDQ, MDV, MDX, Body Material Glass, Compatible Fuse Block Series 1A1907, HB, HFA, HHB, HKP, HRK, HTB, S-8000, Cap Diameter 6.76 mm
