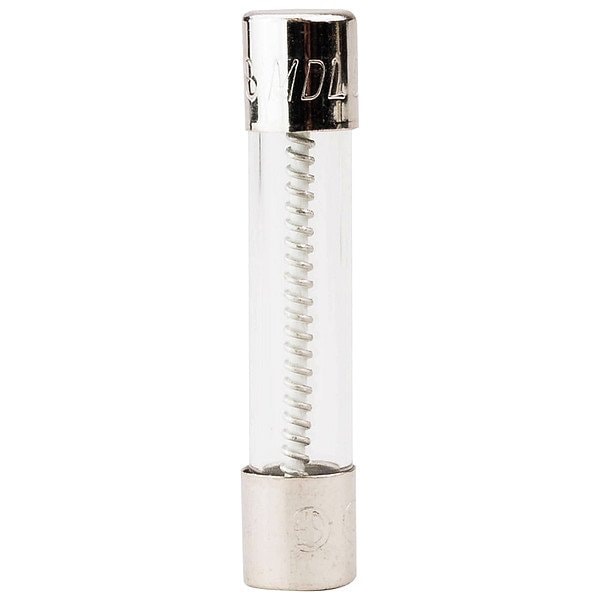

Glass Fuse, MDL Series, Time-Delay, 5A, 250V AC, Non-Indicating, 100 PK
Mfr # BK/MDL-5-R
Zoro # G504217758
product price:Â $301.99
/pk 100, $3.02/ea
Free Shipping & Returns
Key Features
Series
MDL
Speed
Time-Delay
Amps
5A
AC Voltage Rating
250V AC
Visual Indication
Non-Indicating
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- BK/MDL-5-R
- Zoro #
- G504217758
- UPC #
- 051712653114
- Country of Origin
- Taiwan, Province of China
Dimensions
- Diameter
- 6.35 mm
- Length
- 31.70 mm
- Cap Diameter
- 6.76 mm
- Overall Length
- 1 1/4 in
- Overall Diameter
- 1/4 in
Details
- Series
- MDL
- Speed
- Time-Delay
- Amps
- 5A
- AC Voltage Rating
- 250V AC
- Visual Indication
- Non-Indicating
- Interrupt Rating
- 200A at 250V AC, 10kA at 125V AC
- Body Style
- Cylindrical
- Body Material
- Glass
- Equivalent Brand and Series
- Bussmann MDL, Littelfuse 313
- Compatible Fuse Block Series
- 1A1907, HB, HFA, HHB, HKP, HRK, HTB, S-8000
- Fits Fuse Block Style
- Non-Rejection
- DC Voltage Rating
- 32V DC
- Item
- Glass Fuse
- Equivalent Series
- 313, 315, GDL, GDV, MDL, MDQ, MDV, MDX
- Standards
- CE, CSA Certified Class No. 1422-01, UL Listed 248-14, UL Listed Guide JDYX File E19180
- Weight
- 0.005 lb
- Current
- 5 A
- Interrupt Rating - AC
- 200 A
Description
Fuse, 5 A, 250 V AC, Not Applicable, MDL Series, Glass Fuse, Time-Delay, Body Style Cylindrical, Non-Rejection, Interrupt Rating 200 A at 250V AC, Fuse Size 31.70 mm L x 6.40 mm dia, Length 31 7/10 mm, Diameter 6 2/5 mm, Equivalent Brand and Series Bussmann MDL, Littelfuse 313, Equivalent Series 313, 315, GDL, GDV, MDL, MDQ, MDV, MDX, Body Material Glass, Compatible Fuse Block Series 1A1907, HB, HFA, HHB, HKP, HRK, HTB, S-8000, Cap Diameter 6.76 mm
