Shop EATON BUSSMANN

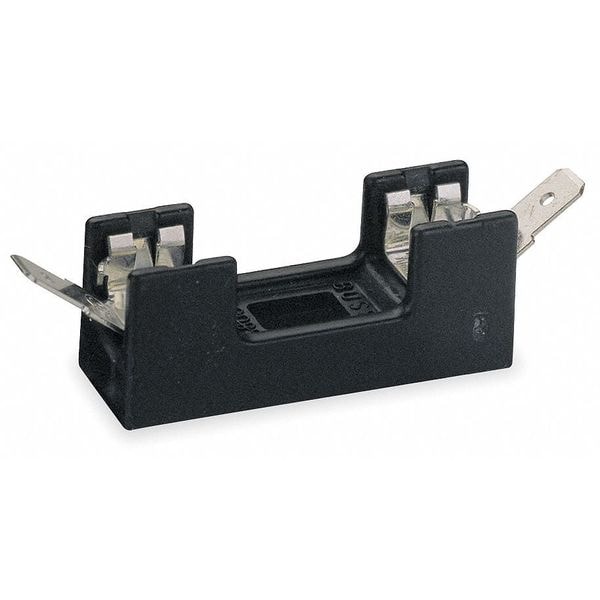

Open Fuse Block, 0 to 30A Amp Range, 300V AC/DC Volt Rating, 1 Poles, Quick Connect

  • Mfr # S-8202-1-R
  • Zoro # G2979322
product price:
$
5.19
/ea

Key Features

Series
S-8000
Number of Poles
1
Amp Range
0 to 30A
Voltage Rating
300V AC, 300V DC
Connector Type
Quick Connect
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
S-8202-1-R
Zoro #
G2979322
UPC #
051712548939
Country of Origin
Mexico
Item
Open Fuse Block
Series
S-8000
Number of Poles
1
Amp Range
0 to 30A
Voltage Rating
300V AC, 300V DC
Connector Type
Quick Connect
Mounting Style
Bolt-Down
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Fuse Block Design
Open
Body Material
Thermoplastic
For Fuse Series
ABC, AGC, AGX, MDA, MDL, MDM, MDQ, TFF, TFL, TGH
Fuse Type
Glass and Ceramic
Standards
CSA Certified, UL Recognized
Wire Range
22 AWG to 10 AWG
Fits Fuse Type
Glass and Ceramic
Fits Fuse Block Style
Non-Rejection
DC Voltage Rating
300 V DC
Current - Maximum
30 A
Current - Minimum
0 A
AC Voltage Rating
300 V AC

Dimensions

Length
2.19 in
Height
0.56 in
Width
1/2 in
For Fuse Size
1-1/4 in L x 1/4 in dia
Overall Width
0.5 in
Wire Size - Minimum
22 AWG
For Fuse Length
1 1/4 in
Overall Length
2.19 in
For Fuse Diameter
1/4 in
Wire Size - Maximum
10 AWG
Overall Height
0.56 in
Wire Rope Length
2.19 in

Description

Fuse Block, Fits Fuse Type Glass and Ceramic, Fuse UL Class Not Class Rated, 0 to 30 A, Number of Poles 1, 300V AC/DC, For Fuse Size 1 1/4 in L x 1/4 in dia, Compatible Fuse Series 311, 312, 313, 314, 315, 322, 326, 3AG, ABC, ACG, GAB, GBB, GDL, GDV, GGC, GSA, MDA, MDL, MDQ, MDV, MDX, MMB, Series S-8000, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 22 to 10 AWG, Mounting Style Bolt-Down, Body Material Thermoplastic, Connector Type Quick Connect, Height 0.56 in, Width 0.5 in
