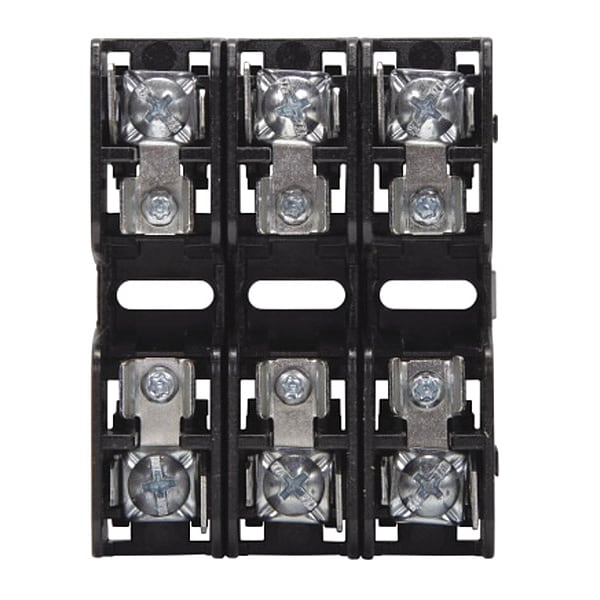

Open Fuse Block, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 3 Poles, Quick Connect
Mfr # BMM603-3PQ
Zoro # G0464226
CAD Available
product price:Â $31.85
/eaKey Features
CAD Drawing
Series
BMM
Number of Poles
3
Amp Range
0 to 30A
Voltage Rating
600V AC/DC
Connector Type
Quick Connect
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
BMM603-3PQ
Zoro #
G0464226
UPC #
051712486439
Country of Origin
Mexico
Dimensions
Wire Size
18 to 10 AWG
Width
2.40 in
Height
1.30 in
Length
3 in
For Fuse Size
1-1/2 in L x 13/32 in dia
Overall Width
2.4 in
Overall Height
1.3 in
Overall Length
3 in
Wire Size - Maximum
10 AWG
For Fuse Length
1 1/2 in
Wire Size - Minimum
18 AWG
For Fuse Diameter
13/32 in
Description
Fuse Block, Fits Fuse Type Midget, Fuse UL Class Midget, 0 to 30 A, Number of Poles 3, 600V AC/300V DC, For Fuse Size 1 1/2 in L x 13/32 in dia, Compatible Fuse Series AGU, ATM, ATQ, BAF, BLF, BLN, FLM, FLQ, FNM, FNQ, GGU, HC10S, KLK, KLKD, KLM, KTK, OTM, TRM, Series BMM, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 18 to 10 AWG, Mounting Style Bolt-Down, DIN Rail, Body Material Thermoplastic, Connector Type Pressure Plate, Quick Connect, Height 1.3 in, Width 2.4 in
