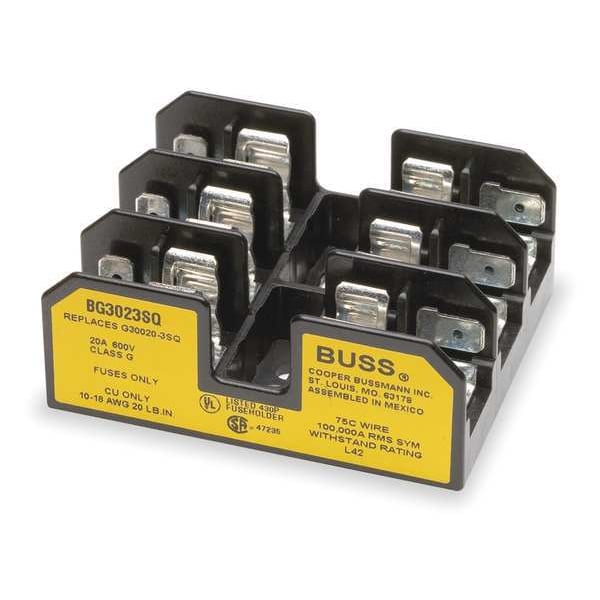

Open Fuse Block, 20 A Amp Range, 600V AC/DC Volt Rating, 3 Poles, Screw with Quick Connect
- Mfr # BG3023SQ
- Zoro # G1570475
product price:Â
$
45.89
/ea
Key Features
UL Class
G
Series
BG
Voltage Rating
600V AC, 170V DC
Connector Type
Screw with Quick Connect
Mounting Style
Bolt-Down
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- BG3023SQ
- Zoro #
- G1570475
- UPC #
- 051712736718
- Country of Origin
- Mexico
- Item
- Open Fuse Block
- UL Class
- G
- Series
- BG
- Number of Poles
- 3
- Amp Range
- 20 A
- Voltage Rating
- 600V AC, 170V DC
- Connector Type
- Screw with Quick Connect
- Mounting Style
- Bolt-Down
- Visual Indication
- Non-Indicating
- Fuse Block Style
- Rejection
- Fuse Block Design
- Open
- Body Material
- Thermoplastic
- Standards
- CSA, RoHS, UL
- Fuse Type
- Industrial
- Fuse Holder Code
- AH
- For Fuse Series
- SC
- Fits Fuse Type
- Class G
- Wire Range
- 14 AWG to 10 AWG
- Short Circuit Current (KA)
- 100 kA
- Weight
- .2 lb
- Fits Fuse Block Style
- Non-Rejection
- DC Voltage Rating
- 170 V DC
- Current - Maximum
- 20 A
- AC Voltage Rating
- 600 V AC
Dimensions
- Wire Size
- 14 to 10 AWG
- Length
- 3 in
- Height
- 1.22 in
- Width
- 1.63 in
- For Fuse Size
- 1-7/16 in L x 7/16 in dia
- Overall Width
- 1.63 in
- For Fuse Diameter
- 13/32 in
- Overall Length
- 3 in
- Overall Height
- 1.22 in
- Wire Size - Maximum
- 10 AWG
- Wire Size - Minimum
- 14 AWG
- For Fuse Length
- 1 13/32 in
- Wire Rope Length
- 3 in
Description
Fuse Block, Fits Fuse Type Class G, Fuse UL Class G, 20 A, Number of Poles 3, 600V AC/170V DC, For Fuse Size 1 7/16 in L x 7/16 in dia, Compatible Fuse Series AG, SC, SLC, Series BG, Non-Indicating, Rejection, Fuse Block Design Open, Wire Range 14 to 10 AWG, Mounting Style Bolt-Down, Body Material Thermoplastic, Connector Type Quick Connect, Screw, Height 1.22 in, Width 1.63 in, Length 3 in, Standards CSA, RoHS, UL
