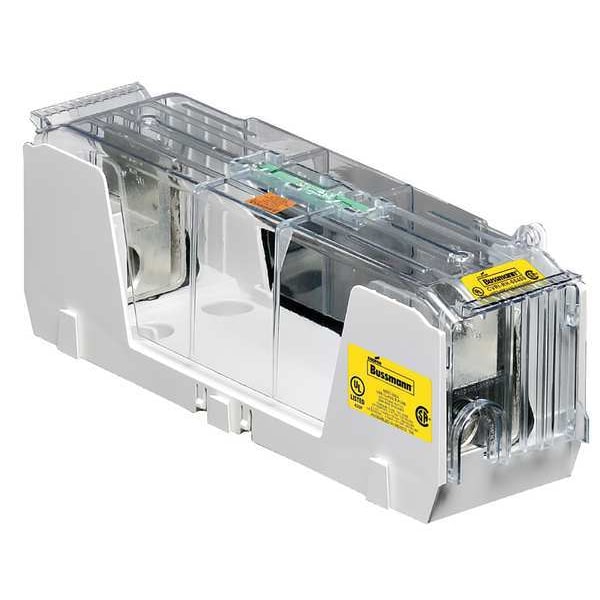

Open Fuse Block, 225 to 400A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Box Lug

  • Mfr # HM60400-1CR
  • Zoro # G5125355
product price:
$
374.99
/ea
Free Shipping & Returns

Key Features

UL Class
H; K5
Series
HM
Number of Poles
1
Amp Range
225 to 400A
Connector Type
Box Lug
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HM60400-1CR
Zoro #
G5125355
UPC #
051712386944
Country of Origin
Mexico
Item
Open Fuse Block
UL Class
H; K5
Series
HM
Number of Poles
1
Amp Range
225 to 400A
Voltage Rating
600V AC
Connector Type
Box Lug
Mounting Style
Bolt-Down
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Spring Reinforced Clip
Yes
Fuse Block Design
Open
Body Material
Thermoplastic
Standards
CSA Certified, UL Listed
Fuse Type
Industrial
For Fuse Series
NOS
Fuse Holder Code
T
Wire Range
600 MCM
Fits Fuse Type
Class H, Class K5
Short Circuit Current (KA)
10 kA
Weight
2.32 lb
Fits Fuse Block Style
Non-Rejection
Current - Maximum
400 A
AC Voltage Rating
600 V AC
Current - Minimum
201 A

Dimensions

Wire Size
4 AWG to 600 MCM
Height
4.80 in
Width
3.59 in
Length
12-1/2 in
For Fuse Size
11-5/8 in L x 2-19/32 in dia
For Fuse Diameter
2 11/32 in
Overall Length
12.5 in
Wire Size - Minimum
4 AWG
For Fuse Length
11 5/8 in
Wire Size - Maximum
600 kcmil
Overall Height
4.8 in
Overall Width
3.59 in
Wire Rope Length
12.5 in

Description

Fuse Block, Fits Fuse Type Class H, Class K5, Fuse UL Class H, K5, 201 to 400 A, Number of Poles 1, 600V AC, For Fuse Size 11 5/8 in L x 2 19/32 in dia, Compatible Fuse Series NLS, NOS, OTS, RES, RFS, RLS, Series HM, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 4 AWG to 600 MCM, Mounting Style Bolt-Down, Body Material Thermoplastic, Connector Type Box Lug, Height 4.8 in, Width 3.59 in, Length 12.5 in, Spring Reinforced Clip Yes, Standards CSA Certified, UL Listed
