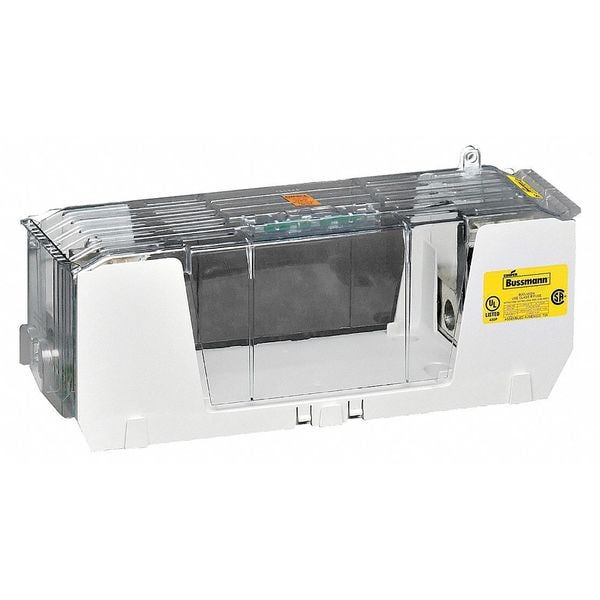

Open Fuse Block, 450 to 600A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Box Lug

  • Mfr # RM60600-1CR
  • Zoro # G5670183
product price:
$
1,008.99
/ea
Sold in multiples of 3 for $3,026.97
Free Shipping & Returns

Key Features

UL Class
R
Series
RM
Number of Poles
1
Amp Range
450 to 600A
Connector Type
Box Lug
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
RM60600-1CR
Zoro #
G5670183
UPC #
051712391061
Country of Origin
Mexico
Item
Open Fuse Block
UL Class
R
Series
RM
Number of Poles
1
Amp Range
450 to 600A
Voltage Rating
600V AC, 300V DC
Connector Type
Box Lug
Mounting Style
Bolt-Down, DIN Rail
Visual Indication
Non-Indicating
Fuse Block Style
Rejection
Fuse Block Design
Open
Body Material
Thermoplastic
Fuse Type
Industrial
For Fuse Series
FRN, FRS, KTN-R, KTS-R, LPN, LPS
Features
Short Circuit and Overload Protection
Fuse Holder Code
U
Standards
CSA Certified, UL Listed
Fits Fuse Type
Class R
Wire Range
4 AWG to 500 MCM
Weight
4.14 lb
Fits Fuse Block Style
Rejection
DC Voltage Rating
300 V DC
Current - Maximum
600 A
Current - Minimum
401 A
AC Voltage Rating
600 V AC

Dimensions

Length
15.11 in
Height
6 in
Width
4.89 in
For Fuse Size
10-3/8 in L x 2-7/8 in dia
Wire Size - Minimum
4 AWG
Wire Size - Maximum
500 kcmil
For Fuse Diameter
2 7/8 in
For Fuse Length
13 3/8 in
Overall Width
4.89 in
Overall Height
6 in
Overall Length
15.11 in
Wire Rope Length
15.11 in
Fits Chest Size
Short Circuit and Overload Protection

Description

Fuse Block, Fits Fuse Type Class R, Fuse UL Class R, 401 to 600 A, Number of Poles 1, 600V AC/300V DC, For Fuse Size 10 3/8 in L x 2 7/8 in dia, Compatible Fuse Series A6D-R, A6K-R, FRS-R, KLSR, KTS-R, KWS-R, LLSRK, LPS-RK, TRS-R, Series RM, Non-Indicating, Rejection, Fuse Block Design Open, Wire Range 4 AWG to 500 MCM, Mounting Style Bolt-Down, DIN Rail, Body Material Thermoplastic, Connector Type Box Lug, Height 6 in, Width 4.89 in, Length 15.11 in
