Shop EATON BUSSMANN

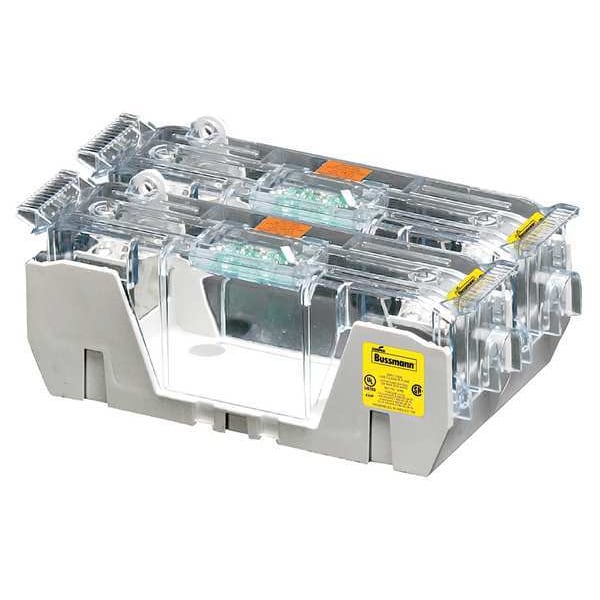

Open Fuse Block, H; K5 UL Class, 250V AC/DC Volt Rating, 2 Poles, Box Lug

  • Mfr # HM25200-2CR
  • Zoro # G2590695

product price:
$
259.99
/ea
Free Shipping & Returns

Key Features

UL Class
H; K5
Series
HM
Number of Poles
2
Amp Range
110 to 200A
Voltage Rating
250V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HM25200-2CR
Zoro #
G2590695
UPC #
051712387279
Country of Origin
Mexico
Item
Open Fuse Block
UL Class
H; K5
Series
HM
Number of Poles
2
Amp Range
110 to 200A
Voltage Rating
250V AC
Connector Type
Box Lug
Mounting Style
Bolt-Down
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Spring Reinforced Clip
Yes
Fuse Block Design
Open
Body Material
Thermoplastic
Fuse Type
Industrial
For Fuse Series
NON
Fuse Holder Code
M
Standards
CSA Certified, UL Listed
Fits Fuse Type
Class H, Class K5
Wire Range
6 AWG to 2 AWG
Short Circuit Current (KA)
10kA
Weight
1.744 LB
Fits Fuse Block Style
Non-Rejection
Current - Maximum
200 A
Current - Minimum
101 A
AC Voltage Rating
250 V AC

Dimensions

Wire Size
6 AWG to 250 MCM
Height
3.80 in
Width
5.30 in
Length
11.20 in
For Fuse Size
7-1/8 in L x 1-9/16 in dia
Overall Width
5.3 in
Overall Height
3.8 in
Overall Length
11.2 in
For Fuse Diameter
1 9/16 in
For Fuse Length
7 1/8 in
Wire Size - Minimum
6 AWG
Wire Size - Maximum
250 kcmil
Wire Rope Length
11.2 in

Description

Fuse Block, Fits Fuse Type Class H, Class K5, Fuse UL Class H, K5, 101 to 200 A, Number of Poles 2, 250V AC, For Fuse Size 7 1/8 in L x 1 9/16 in dia, Compatible Fuse Series NLN, NON, OT, REN, RF, RLN, Series HM, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 6 AWG to 250 MCM, Mounting Style Bolt-Down, Body Material Thermoplastic, Connector Type Box Lug, Height 3.8 in, Width 5.3 in, Length 11.2 in, Spring Reinforced Clip Yes, Standards CSA Certified, UL Listed
