Shop EATON BUSSMANN

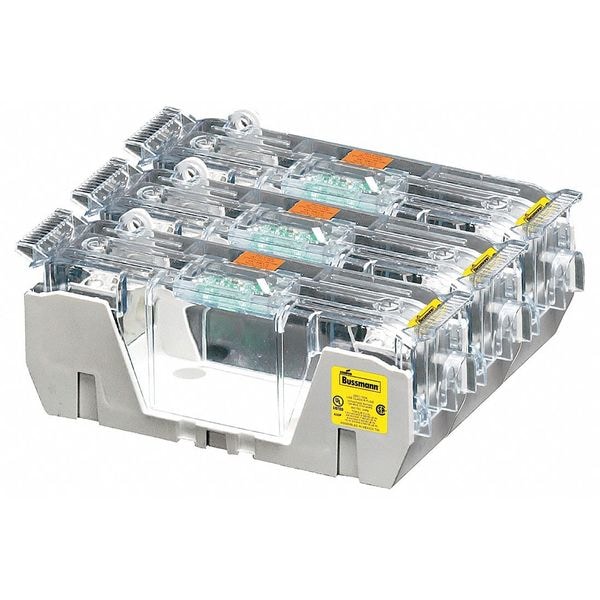

Open Fuse Block, H; K5 UL Class, 250V AC/DC Volt Rating, 3 Poles, Box Lug

  • Mfr # HM25400-3CR
  • Zoro # G2590668

product price:
$
1,085.99
/ea
Free Shipping & Returns

Key Features

UL Class
H; K5
Series
HM
Number of Poles
3
Amp Range
225 to 400A
Connector Type
Box Lug
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HM25400-3CR
Zoro #
G2590668
UPC #
051712386937
Country of Origin
Mexico
Item
Open Fuse Block
UL Class
H; K5
Series
HM
Number of Poles
3
Amp Range
225 to 400A
Voltage Rating
250V AC
Connector Type
Box Lug
Mounting Style
Bolt-Down
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Spring Reinforced Clip
Yes
Fuse Block Design
Open
Body Material
Thermoplastic
For Fuse Series
NON
Fuse Type
Industrial
Standards
CSA Certified, UL Listed
Fuse Holder Code
N
Fits Fuse Type
Class H, Class K5
Wire Range
4 AWG to 3/0 AWG
Short Circuit Current (KA)
10kA
Weight
6.68 LB
Fits Fuse Block Style
Non-Rejection
Current - Minimum
201 A
AC Voltage Rating
250 V AC
Current - Maximum
400 A

Dimensions

Wire Size
4 AWG to 600 MCM
Height
4.80 in
Length
13.20 in
Width
10.91 in
For Fuse Size
8-5/8 in L x 2-1/16 in dia
Wire Size - Minimum
4 AWG
Overall Length
13.2 in
For Fuse Length
8 5/8 in
Overall Height
4.8 in
Overall Width
10.91 in
Wire Size - Maximum
600 kcmil
For Fuse Diameter
2 3/8 in
Wire Rope Length
13.2 in

Description

Fuse Block, Fits Fuse Type Class H, Class K5, Fuse UL Class H, K5, 201 to 400 A, Number of Poles 3, 250V AC, For Fuse Size 8 5/8 in L x 2 1/16 in dia, Compatible Fuse Series NLN; NON; OT; REN; RF; RLN, Series HM, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 4 AWG to 600 MCM, Mounting Style Bolt-Down, Body Material Thermoplastic, Connector Type Box Lug, Height 4.8 in, Width 10.91 in, Length 13.2 in, Spring Reinforced Clip Yes, Standards CSA Certified, UL Listed
