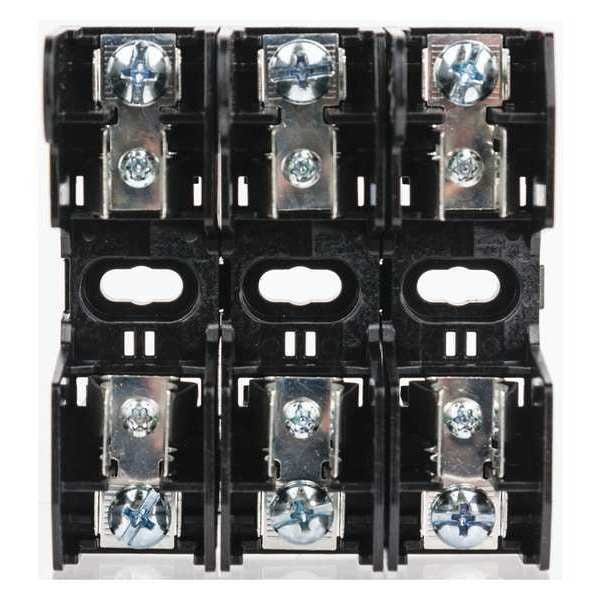

Open Fuse Block, H; K5 UL Class, 250V AC/DC Volt Rating, 3 Poles, Screw
Mfr # HM25030-3SR
Zoro # G0464287
product price: $45.85
/eaKey Features
UL Class
H; K5
Series
HM
Number of Poles
3
Amp Range
0 to 30A
Voltage Rating
250V AC/DC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HM25030-3SR
Zoro #
G0464287
UPC #
051712512732
Country of Origin
Mexico
Dimensions
Length
3.20 in
Width
2.90 in
Height
2 in
For Fuse Size
2 in L x 9/16 in dia
Overall Height
2 in
Wire Size - Minimum
18 AWG
Wire Size - Maximum
10 AWG
For Fuse Length
2 in
Overall Length
3.2 in
For Fuse Diameter
9/16 in
Overall Width
2.9 in
Description
Fuse Block, Fits Fuse Type Class H, Class K5, Fuse UL Class H, K5, 0 to 30 A, Number of Poles 3, 250V AC/125V DC, For Fuse Size 2 in L x 9/16 in dia, Compatible Fuse Series NLN, NON, OT, REN, RF, RLN, Series HM, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 18 to 10 AWG, Mounting Style Bolt-Down, DIN Rail, Body Material Thermoplastic, Connector Type Screw, Height 2 in, Width 2.9 in, Length 3.2 in, Spring Reinforced Clip Yes, Standards CE, CSA Certified, REACH, RoHS, UL Listed
