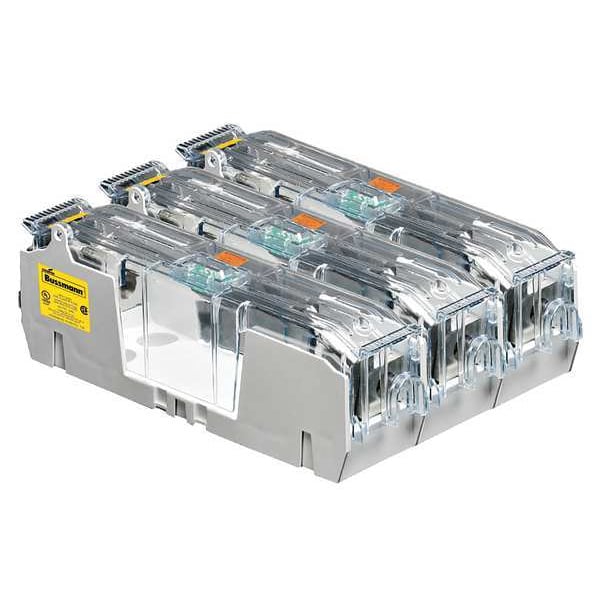

Open Fuse Block, H; K5 UL Class, 600V AC/DC Volt Rating, 3 Poles, Box Lug
- Mfr # HM60200-3CR
- Zoro # G2590537
product price:Â
$
478.99
/ea
Free Shipping & Returns
Key Features
UL Class
H; K5
Series
HM
Number of Poles
3
Amp Range
110 to 200A
Connector Type
Box Lug
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HM60200-3CR
- Zoro #
- G2590537
- UPC #
- 051712387316
- Country of Origin
- Mexico
Dimensions
- Wire Size
- 6 AWG to 250 MCM
- Length
- 10.70 in
- Width
- 7.91 in
- Height
- 3.80 in
- For Fuse Size
- 9-5/8 in L x 1-13/16 in dia
- Overall Width
- 7.91 in
- Wire Size - Minimum
- 6 AWG
- For Fuse Diameter
- 1 5/8 in
- For Fuse Length
- 9 5/8 in
- Overall Height
- 3.8 in
- Wire Size - Maximum
- 250 kcmil
- Overall Length
- 10.7 in
- Wire Rope Length
- 10.7 in
Description
Fuse Block, Fits Fuse Type Class H, Class K5, Fuse UL Class H, K5, 101 to 200 A, Number of Poles 3, 600V AC, For Fuse Size 9 5/8 in L x 1 13/16 in dia, Compatible Fuse Series NLS, NOS, OTS, RES, RFS, RLS, Series HM, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 6 AWG to 250 MCM, Mounting Style Bolt-Down, Body Material Thermoplastic, Connector Type Box Lug, Height 3.8 in, Width 7.91 in, Length 10.7 in, Spring Reinforced Clip Yes, Standards CSA Certified, UL Listed
