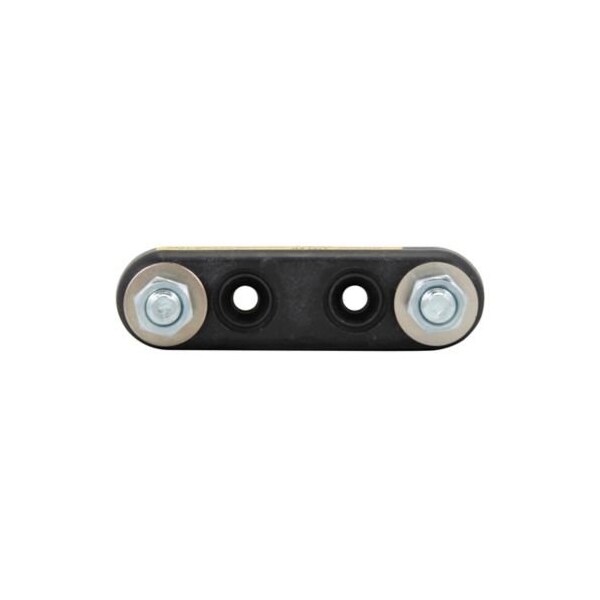

Open Fuse Block, J UL Class, 125V AC/80V DC Volt Rating, 1 Poles, Screw
- Mfr # 4164
- Zoro # G3430411
CAD Available
product price:Â
$
42.32
/ea
Key Features

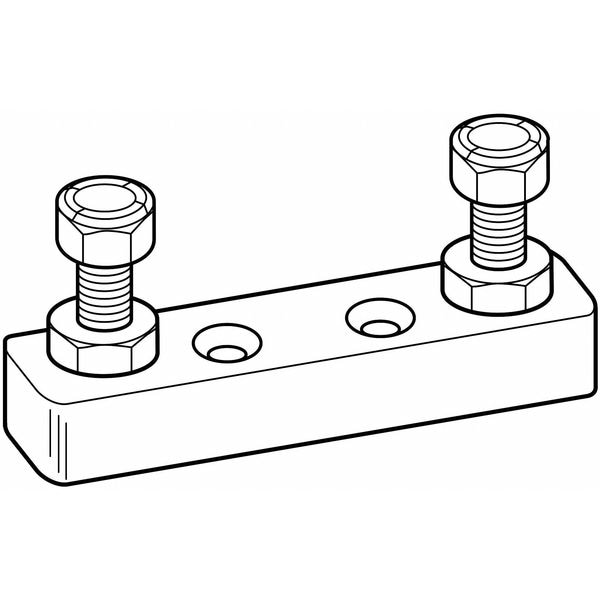

CAD Drawing
UL Class
J
Series
4164
Number of Poles
1
Amp Range
10 to 800A
Voltage Rating
125V AC, 80V DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 4164
- Zoro #
- G3430411
- UPC #
- 051712737920
- Country of Origin
- United States
- CAD Available
- Yes
- Item
- Open Fuse Block
- UL Class
- J
- Series
- 4164
- Number of Poles
- 1
- Amp Range
- 10 to 800A
- Voltage Rating
- 125V AC, 80V DC
- Connector Type
- Screw
- Mounting Style
- Bolt-Down
- Visual Indication
- Non-Indicating
- Fuse Block Style
- Non-Rejection
- Fuse Block Design
- Open
- Body Material
- Thermoplastic
- Fuse Type
- Limiter
- For Fuse Series
- ANN, ANL
- Fuse Holder Code
- X
- Fits Fuse Type
- Forklift Limiter
- Fits Fuse Block Style
- Non-Rejection
- Fuse Block or Holder DC Voltage Rating
- 80VDC
- Fuse Block or Holder AC Voltage Rating
- 125VAC
- Current - Minimum
- 10 A
- Current - Maximum
- 800 A
- DC Voltage Rating
- 80 V DC
- AC Voltage Rating
- 125 V AC
Dimensions
- Height
- 1.62 in
- Width
- 1 in
- Length
- 3.37 in
- For Fuse Size
- 3-3/16 in L x 7/8 in dia
- Overall Length
- 3.37 in
- Overall Width
- 1 in
- Overall Height
- 1.62 in
- For Fuse Length
- 3 3/16 in
- For Fuse Width
- 7/8 in
- Wire Rope Length
- 3.37 in
Description
Fuse Block, Fits Fuse Type Forklift Limiter, Fuse UL Class Not Class Rated, 10 to 800 A, Number of Poles 1, 125V AC/80V DC, For Fuse Size 3 3/16 in L x 7/8 in dia, Compatible Fuse Series ANL, ANN, CNL, CNN, Series 4164, Non-Indicating, Non-Rejection, Fuse Block Design Open, Mounting Style Bolt-Down, Body Material Thermoplastic, Connector Type Stud, Height 1.62 in, Width 1 in, Length 3.37 in
