Shop EATON BUSSMANN

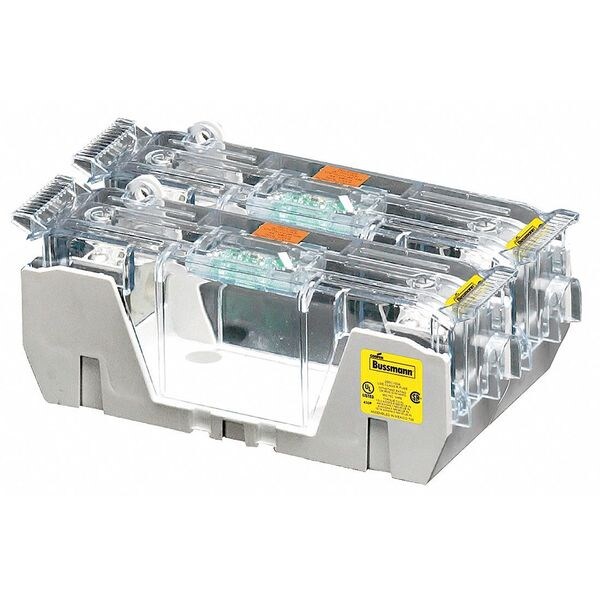

Open Fuse Block, R UL Class, 250V AC/DC Volt Rating, 2 Poles, Box Lug

  • Mfr # RM25400-2CR
  • Zoro # G2590607

product price:
$
1,204.99
/ea
Free Shipping & Returns

Key Features

UL Class
R
Series
RM
Number of Poles
2
Amp Range
225 to 400A
Connector Type
Box Lug
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
RM25400-2CR
Zoro #
G2590607
UPC #
051712386982
Country of Origin
Mexico
Item
Open Fuse Block
UL Class
R
Series
RM
Number of Poles
2
Amp Range
225 to 400A
Voltage Rating
250V AC, 250V DC
Connector Type
Box Lug
Mounting Style
Bolt-Down, DIN Rail
Visual Indication
Non-Indicating
Fuse Block Style
Rejection
Fuse Block Design
Open
Body Material
Thermoplastic
Standards
CSA Certified, UL Listed
Fuse Type
Industrial
Fuse Holder Code
N
Features
Protection Against Single Phase Motor Damage
For Fuse Series
FRN, FRS, KTN-R, KTS-R, LPN, LPS
Fits Fuse Type
Class R
Wire Range
4 AWG to 500 MCM
Weight
4.48 lb
Fits Fuse Block Style
Rejection
Current - Minimum
201 A
AC Voltage Rating
250 V AC
DC Voltage Rating
250 V DC
Current - Maximum
400 A

Dimensions

Wire Size
4 AWG to 600 MCM
Width
7.30 in
Height
4.80 in
Length
10.11 in
For Fuse Size
8-5/8 in L x 2-3/8 in dia
For Fuse Length
8 5/8 in
Overall Height
4.8 in
Wire Size - Maximum
600 kcmil
For Fuse Diameter
2 3/8 in
Wire Size - Minimum
4 AWG
Overall Width
7.3 in
Overall Length
10.11 in
Wire Rope Length
10.11 in
Fits Chest Size
Protection Against Single Phase Motor Damage

Description

Fuse Block, Fits Fuse Type Class R, Fuse UL Class R, 201 to 400 A, Number of Poles 2, 250V AC/DC, For Fuse Size 8 5/8 in L x 2 3/8 in dia, Compatible Fuse Series A2D-R, A2K-R, FLNR, FRN-R, KLNR, KTN-R, KWN-R, LLNRK, LPN-RK, TR-R, Series RM, Non-Indicating, Rejection, Fuse Block Design Open, Wire Range 4 AWG to 600 MCM, Mounting Style Bolt-Down, DIN Rail, Body Material Thermoplastic, Connector Type Box Lug, Height 4.8 in, Width 7.3 in, Length 10.11 in
