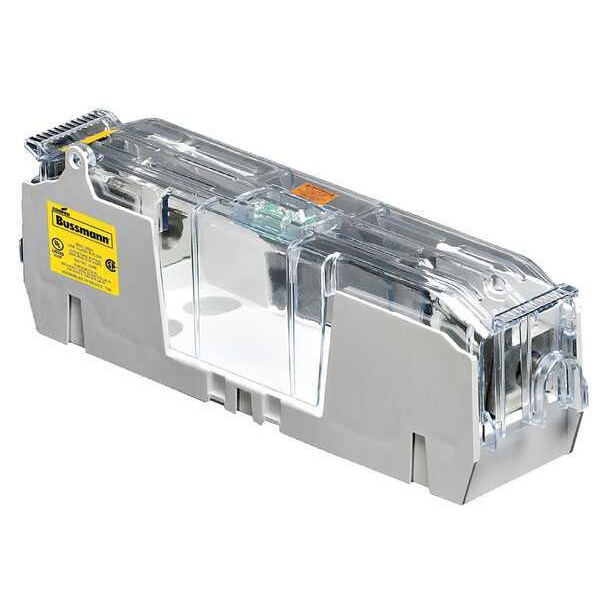

Open Fuse Block, R UL Class, 600V AC/DC Volt Rating, 1 Poles, Box Lug
Mfr # RM60200-1CR
Zoro # G5125391
product price:Â
$
197.99
/ea
Free Shipping & Returns
Key Features
UL Class
R
Series
RM
Number of Poles
1
Amp Range
110 to 200A
Connector Type
Box Lug
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- RM60200-1CR
- Zoro #
- G5125391
- UPC #
- 051712387361
- Country of Origin
- Mexico
- Item
- Open Fuse Block
- UL Class
- R
- Series
- RM
- Number of Poles
- 1
- Amp Range
- 110 to 200A
- Voltage Rating
- 600V AC/DC
- Connector Type
- Box Lug
- Mounting Style
- Bolt-Down; DIN Rail
- Visual Indication
- Non-Indicating
- Fuse Block Style
- Rejection
- Fuse Block Design
- Open
- Body Material
- Thermoplastic
- Fuse Holder Code
- S
- Fuse Type
- Industrial
- For Fuse Series
- FRN, FRS, KTN-R, KTS-R, LPN, LPS
- Standards
- CSA Certified, UL Listed
- Wire Range
- 1 AWG to 250 MCM, 1 AWG to 3/0 AWG
- Fits Fuse Type
- Class R
- Weight
- .9 lb
- Fits Fuse Block Style
- Rejection
- Current - Minimum
- 101 A
- DC Voltage Rating
- 300 V DC
- AC Voltage Rating
- 600 V AC
- Current - Maximum
- 200 A
Description
Fuse Block, Fits Fuse Type Class R, Fuse UL Class R, 101 to 200 A, Number of Poles 1, 600V AC/300V DC, For Fuse Size 7 1/8 in L x 1 9/16 in dia, Compatible Fuse Series A6D-R; A6K-R; FRS-R; KLSR; KTS-R; KWS-R; LLSRK; LPS-RK; TRS-R, Series RM, Non-Indicating, Rejection, Fuse Block Design Open, Wire Range 6 AWG to 250 MCM, Mounting Style Bolt-Down, DIN Rail, Body Material Thermoplastic, Connector Type Box Lug, Height 3.8 in, Width 2.66 in, Length 11.2 in, Standards CSA Certified, UL Listed
