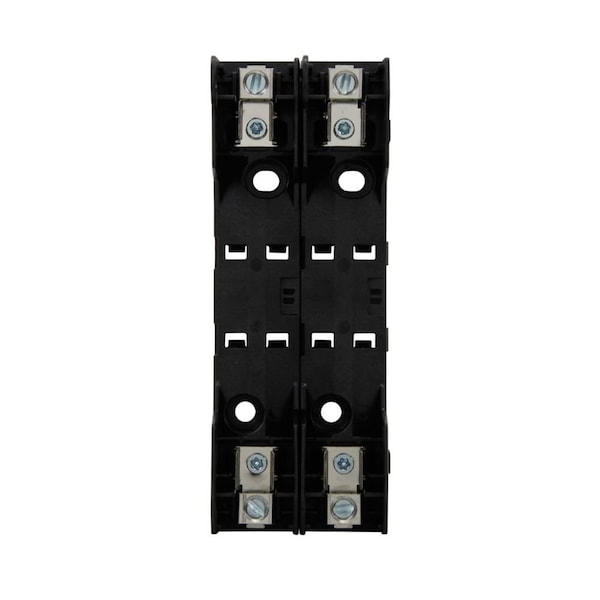

Open Fuse Block, R UL Class, 600V AC/DC Volt Rating, 2 Poles, Box Lug
Mfr # RM60030-2CR
Zoro # G0464591
product price:Â
$
62.55
/ea
Key Features
UL Class
R
Series
RM
Number of Poles
2
Amp Range
0 to 30A
Voltage Rating
600V AC/DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- RM60030-2CR
- Zoro #
- G0464591
- UPC #
- 051712511551
- Country of Origin
- Mexico
- Item
- Open Fuse Block
- UL Class
- R
- Series
- RM
- Number of Poles
- 2
- Amp Range
- 0 to 30A
- Voltage Rating
- 600V AC/DC
- Connector Type
- Box Lug
- Mounting Style
- Bolt-Down; DIN Rail
- Visual Indication
- Non-Indicating
- Fuse Block Style
- Rejection
- Fuse Block Design
- Open
- Body Material
- Thermoplastic
- Fuse Holder Code
- P
- For Fuse Series
- FRN, FRS, KTN-R, KTS-R, KWN-R, LPN, LPS
- Fuse Type
- Industrial
- Standards
- CE, CSA Certified, REACH, RoHS, UL Listed
- Wire Range
- 14 AWG to 2 AWG
- Fits Fuse Type
- Class R
- Weight
- .45 lb
- Fits Fuse Block Style
- Rejection
- Current - Maximum
- 30 A
- DC Voltage Rating
- 300 V DC
- AC Voltage Rating
- 600 V AC
- Current - Minimum
- 0 A
Description
Fuse Block, Fits Fuse Type Class R, Fuse UL Class R, 0 to 30 A, Number of Poles 2, 600V AC/300V DC, For Fuse Size 5 in L x 13/16 in dia, Compatible Fuse Series A6D-R, A6K-R, FRS-R, KLSR, KTS-R, KWS-R, LLSRK, LPS-RK, TRS-R, Series RM, Non-Indicating, Rejection, Fuse Block Design Open, Wire Range 14 to 2 AWG, Mounting Style Bolt-Down, DIN Rail, Body Material Thermoplastic, Connector Type Box Lug, Height 2.3 in, Width 2.4 in, Length 7 in, Standards CE, CSA Certified, REACH, RoHS, UL Listed
