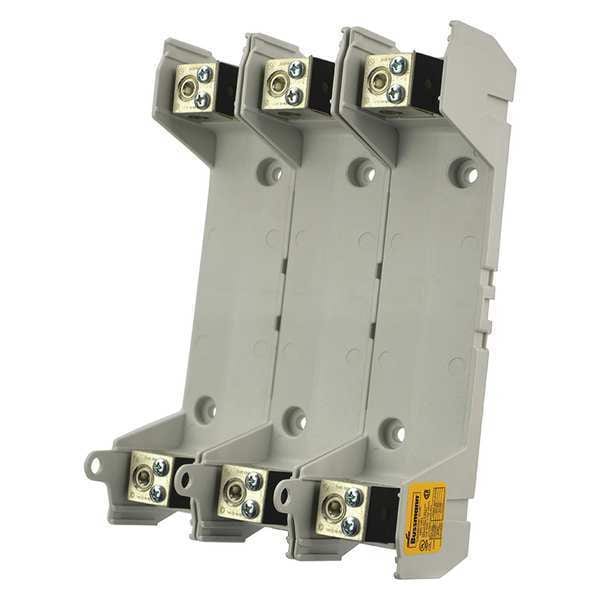

Open Fuse Block, R UL Class, 600V AC/DC Volt Rating, 3 Poles, Box Lug
Mfr # RM60100-3CR
Zoro # G8985435
product price:Â
$
243.99
/ea
Free Shipping & Returns
Key Features
UL Class
R
Series
RM
Number of Poles
3
Amp Range
70 to 100A
Connector Type
Box Lug
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- RM60100-3CR
- Zoro #
- G8985435
- UPC #
- 051712391238
- Country of Origin
- Mexico
Dimensions
- Wire Size
- 14 to 1/0 AWG
- Width
- 6 in
- Length
- 9.20 in
- Height
- 2.80 in
- For Fuse Size
- 5 in L x 1-7/64 in dia
- Wire Size - Minimum
- 14 AWG
- For Fuse Length
- 7 7/8 in
- For Fuse Diameter
- 1 1/8 in
- Overall Length
- 9.2 in
- Wire Size - Maximum
- 1/0 AWG
- Overall Height
- 2.8 in
- Overall Width
- 6 in
- Wire Rope Length
- 9.2 in
Description
Fuse Block, Fits Fuse Type Class R, Fuse UL Class R, 61 to 100 A, Number of Poles 3, 600V AC/300V DC, For Fuse Size 5 in L x 1 7/64 in dia, Compatible Fuse Series A6D-R; A6K-R; FRS-R; KLSR; KTS-R; KWS-R; LLSRK; LPS-RK; TRS-R, Series RM, Non-Indicating, Rejection, Fuse Block Design Open, Wire Range 14 to 1/0 AWG, Mounting Style Bolt-Down, DIN Rail, Body Material Thermoplastic, Connector Type Box Lug, Height 2.8 in, Width 6 in, Length 9.2 in, Features Short Circuit and Overload Protection
