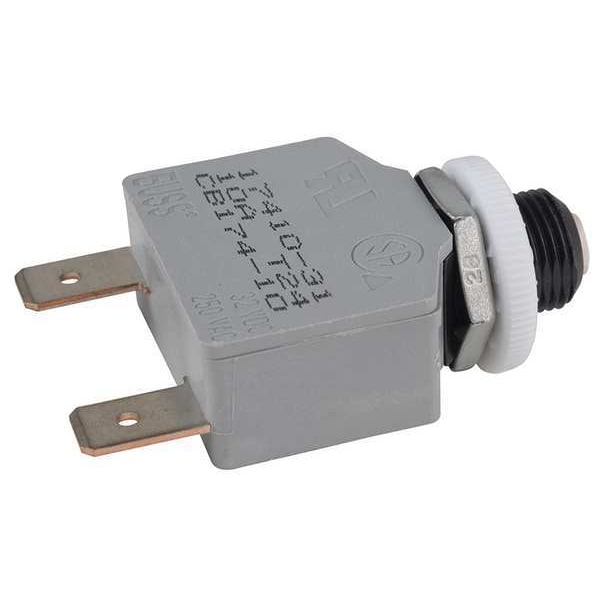

Panel Mount Circuit Breaker, 10 A, 32V DC

  • Mfr # CB174-10

  • Zoro # G1029104

product price:  $10.39
/ea

Key Features

Actuator Color
White
Switch Type
Panel
Depth
0.48 in
Circuit Breaker Type
Manual Reset
Standards
CSA 22.2 No. 235, SAE J1171, SAE J553, UL 1077
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CB174-10
Zoro #
G1029104
UPC #
051712593373
Country of Origin
China

Dimensions

Depth
0.48 in
Width
1.11 in
Length
2.21 in
Panel Cutout Size
0.375 in dia
Mounting Hole Thread Size
3/8"-27
Max. Panel Thickness
0.375 in

Details

Item
Panel Mount Circuit Breaker
Actuator Color
White
Switch Type
Panel
Circuit Breaker Type
Manual Reset
Standards
CSA 22.2 No. 235, SAE J1171, SAE J553, UL 1077
AC Voltage Rating
250V AC
Amps
10 A
Number of Poles
1
Terminal Connection
1/4 in Quick Connect
DC Voltage Rating
32V DC
Phase
Single
Max. Operating Temp.
Not Rated
Max. AIR Rating
1kA at 250V AC
Min. Operating Temp.
Not Rated
Circuit Breaker Actuator
Push Button
Curve Type
Medium

Description

Panel Mount Circuit Breaker, Amps 10 A, AC Voltage Rating 250V AC, Terminal Connection 1/4 in Quick Connect, DC Voltage Rating 32V DC, Manual Reset, Number of Poles 1, Circuit Breaker Actuator Push Button, Max. AIR Rating 1kA at 250V AC, Curve Type Medium, Phase Single, Mounting Type Panel, Actuator Color White, Panel Cutout Size 0.375 in dia, Max. Panel Thickness 0.375 in, Mounting Hole Thread Size 3/8 In.-27, Length 2.21 in, Width 1.11 in, Depth 0.48 in, Min. Operating Temp. Not Rated
