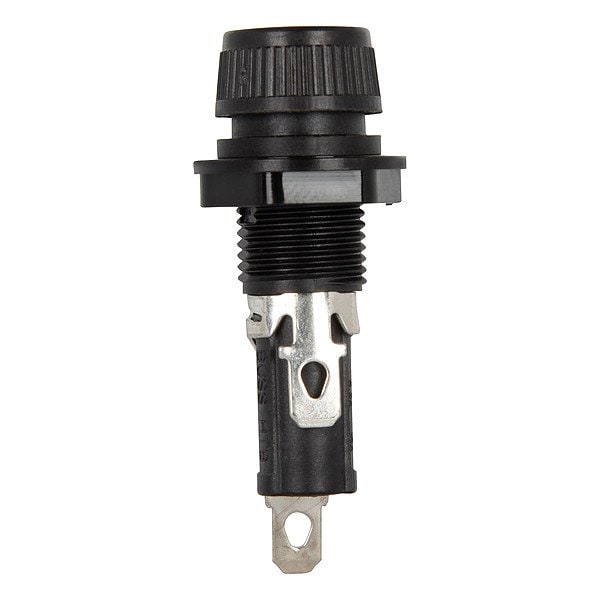

Panel Mount Fuse Holder, 1 Poles, 0 to 20 A Amp Range, 250V AC/300V AC Volt Rating
Mfr # HTB-26I-R
Zoro # G616524508
product price:Â
$
9.19
/ea
Key Features
Number of Poles
1
Amp Range
0 to 20 A
Voltage Rating
250V AC/300V AC
Connector Type
Quick-Connect
Mounting Style
Panel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- HTB-26I-R
- Zoro #
- G616524508
- UPC #
- 051712659420
- Country of Origin
- Mexico
Dimensions
- For Fuse Length
- 1 1/4 in
- Length
- 1.595 in
- For Fuse Size
- 1/4 in dia x 1-1/4 in L
- Overall Diameter
- 0.506 in
- Overall Length
- 1.595 in
- For Fuse Diameter
- 1/4 in
- Diameter
- 0.506 in
- Wire Rope Length
- 1.595 in
Details
- Item
- Panel Mount Fuse Holder
- Number of Poles
- 1
- Amp Range
- 0 to 20 A
- Voltage Rating
- 250V AC/300V AC
- Connector Type
- Quick-Connect
- Mounting Style
- Panel
- Body Material
- Thermoplastic
- Current - Minimum
- 0 A
- Mounting Hole
- 0.506 in
- AC Voltage Rating
- 250 V AC
- Standards
- CE, CSA Certified, UL Recognized
- Features
- Flame Retardant
- DC Voltage Rating
- Not Rated
- Fuse Cap Style
- Knob
- Current - Maximum
- 20 A
Description
Panel Mount Fuse Holder, 0 to 20 A, Number of Poles 1, 250V AC/300V AC, For Fuse Size 1/4 in dia x 1-1/4 in L, Compatible Fuse Series ABC, AGC, MDA, MDL, Fuse Cap Style Knob, Mounting Style Panel, Mounting Hole 0.506 in, Wire Size Not Applicable, Wire Length Not Applicable, Body Material Thermoplastic, Connector Type Quick-Connect, Diameter 0.506 in, Length 1.125 in, Features Flame Retardant, Standards CE, CSA Certified, UL Recognized
