Shop EATON BUSSMANN

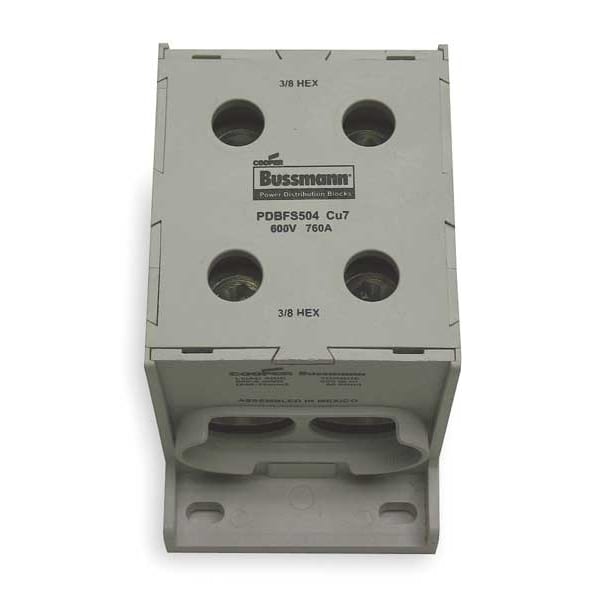

Power Distribution Block, Finger-Safe, 1 Pole, 760 A Copper, 600 V AC/DC, Panel

  • Mfr # PDBFS504

  • Zoro # G3289955

product price:  $358.99
/ea
Free Shipping & Returns

Key Features

Power Distribution Block Design
Finger-Safe
For Conductor Material
Aluminum, Copper
Maximum Current - Copper Conductor
760 A
Maximum Current - Aluminum Conductor
760 A
Maximum Voltage
600 V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PDBFS504
Zoro #
G3289955
UPC #
051712659925
Country of Origin
China

Dimensions

Length
4.67 in
Depth
3.15 in
Width
2.56 in
Overall Depth
3 in
Overall Length
4.5 in
For Load Aluminum Wire Size - Minimum
6 AWG
For Line Aluminum Wire Size - Maximum
500 kcmil
For Line Copper Wire Size - Maximum
500 kcmil
For Line Aluminum Wire Size - Minimum
6 AWG
For Line Copper Wire Size - Minimum
6 AWG
Overall Width
3 in
For Load Copper Wire Size - Maximum
500 kcmil
For Load Aluminum Wire Size - Maximum
500 kcmil
For Load Copper Wire Size - Minimum
6 AWG

Details

Item
Power Distribution Block
Power Distribution Block Design
Finger-Safe
For Conductor Material
Aluminum, Copper
Maximum Current - Copper Conductor
760 A
Maximum Current - Aluminum Conductor
760 A
Maximum Voltage
600 V AC/DC
Number of Poles
1
Line Connections/Pole
2
Load Connections/Pole
2
Line Side Connection Type
Lug
Load Side Connection Type
Lug
Terminal Material
Aluminum
Maximum Operating Temperature
248 Degrees F
Mounting Type
Panel
Standards
CE Component IEC, CSA Certified Class 6228-01, RoHS Compliant, UL 1953
UL 94 Flammability Rating
V-0
Minimum Operating Temperature
-4 Degrees F
Number of Circuits
1
Features
IP-20 Finger-safe
Weight
1.009 lb
Short Circuit Current Rating
200 kAIC (500 kcmil), 100 kAIC (#6-500 kcmil)
Secondary Wire Range
6 AWG to 500 MCM
Primary Wire Range
6 AWG to 500 kcmil

Description

Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 2, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 2, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 6 AWG, For Load Copper Wire Size - Maximum 500 kcmil, Maximum Current - Copper Conductor 760 A, Maximum Voltage 600 V, Mounting Type Surface, Number of Poles 1, Overall Depth 3 in
