Shop EATON BUSSMANN

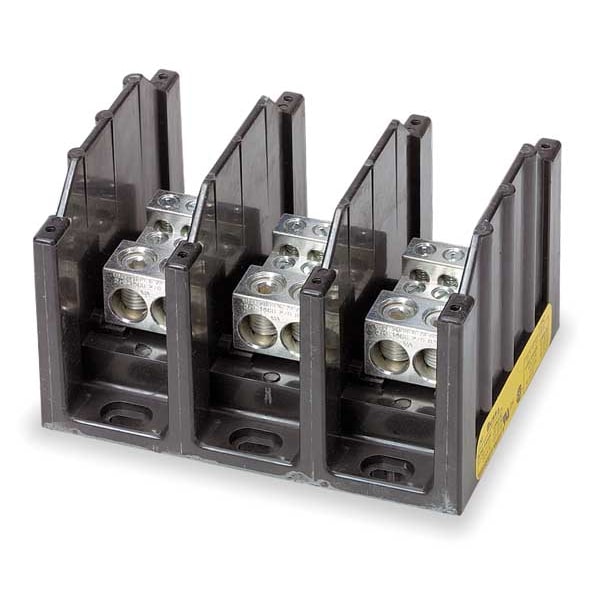

Power Distribution Block, Open, 3 Pole, 350 A Copper, 600 V AC/DC

  • Mfr # 16325-3

  • Zoro # G0348932

CAD Available
product price:  $178.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Power Distribution Block Design
Open
For Conductor Material
Aluminum, Copper
Maximum Current - Copper Conductor
350 A
Maximum Current - Aluminum Conductor
350 A
Maximum Voltage
600 V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16325-3
Zoro #
G0348932
UPC #
051712148757
Country of Origin
Mexico

Dimensions

Length
4.0 in
Width
5.21 in
Depth
3.32 in
For Line Copper Wire Size - Maximum
2/0 AWG
For Line Aluminum Wire Size - Minimum
8 AWG
For Load Copper Wire Size - Minimum
14 AWG
For Line Aluminum Wire Size - Maximum
2/0 AWG
Overall Depth
1 in
Overall Width
1 in
For Line Copper Wire Size - Minimum
14 AWG
Overall Length
1 in
For Load Copper Wire Size - Maximum
4 AWG
For Load Aluminum Wire Size - Maximum
4 AWG
For Load Aluminum Wire Size - Minimum
8 AWG

Details

Item
Power Distribution Block
Power Distribution Block Design
Open
For Conductor Material
Aluminum, Copper
Maximum Current - Copper Conductor
350 A
Maximum Current - Aluminum Conductor
350 A
Maximum Voltage
600 V AC/DC
Number of Poles
3
Line Connections/Pole
2
Load Connections/Pole
6
Line Side Connection Type
Lug
Load Side Connection Type
Lug
Terminal Material
Aluminum
Housing Material
Thermoplastic
Maximum Operating Temperature
248 Degrees F
Standards
CSA Class 6228-01, RoHS Compliant, UL 1059
Number of Circuits
3
Minimum Operating Temperature
-4 Degrees F
UL 94 Flammability Rating
V-0
Housing Color
Black
Color
Black
Short Circuit Current Rating
10 kA
Weight
0.089 lb
CAD Available
Yes
Secondary Wire Range
14 to 4 AWG CU, 8 to 4 AWG AL
Primary Wire Range
14 to 2/0 AWG (Copper), 8 to 2/0 AWG AL

Description

Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 2, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 14 AWG, For Line Copper Wire Size - Maximum 2/0 AWG, Load Connections/Pole 6, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 4 AWG, Maximum Current - Copper Conductor 350 A, Maximum Voltage 600 V, Mounting Type Surface, Number of Poles 3, Overall Depth 1 in
