Shop EATON BUSSMANN

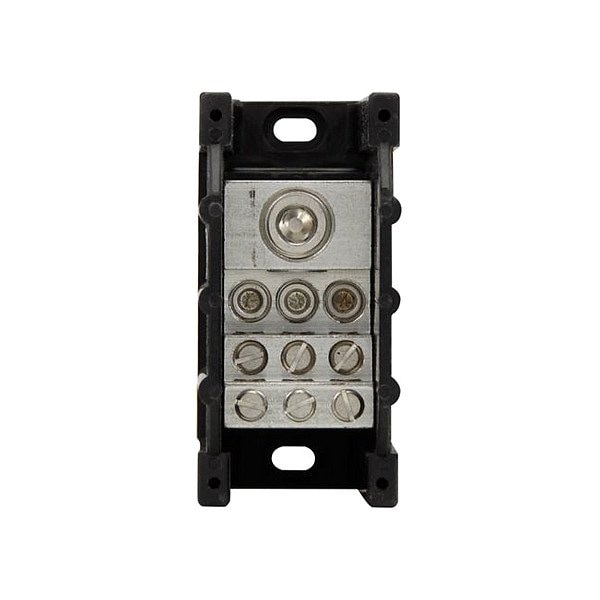

PowerDistributionBlock, 310A, 600V, 1Poles

  • Mfr # PDB371-1

  • Zoro # G522605087

product price:  $164.99
/ea
Free Shipping & Returns

Key Features

Load Side Connection Type
Lug
For Load Aluminum Wire Size - Maximum
2 AWG
For Load Aluminum Wire Size - Minimum
8 AWG
Primary Wire Range
1/0 AWG, 2/0 AWG to 350 MCM, 6 to 1 AWG
Overall Depth
3.22 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PDB371-1
Zoro #
G522605087
UPC #
051712637770
Country of Origin
Mexico

Dimensions

For Load Aluminum Wire Size - Maximum
2 AWG
For Load Aluminum Wire Size - Minimum
8 AWG
Overall Depth
3.22 in
Overall Width
1.75 in
For Line Aluminum Wire Size - Minimum
6 AWG
Wire Rope Length
4 in
For Line Copper Wire Size - Maximum
350 kcmil
For Line Copper Wire Size - Minimum
6 AWG
For Line Aluminum Wire Size - Maximum
350 kcmil
For Load Copper Wire Size - Maximum
2 AWG
For Load Copper Wire Size - Minimum
14 AWG
Overall Length
4 in

Details

Load Side Connection Type
Lug
Item
Power Distribution Block
Primary Wire Range
1/0 AWG, 2/0 AWG to 350 MCM, 6 to 1 AWG
Series
PDB
Maximum Current - Copper Conductor
310 A
Power Distribution Block Design
Open
Number of Poles
1
For Conductor Material
Aluminum, Copper
Maximum Current - Aluminum Conductor
310 A
Line Connections/Pole
2
Load Connections/Pole
6
Standards
RoHS
Terminal Material
Aluminum
UL 94 Flammability Rating
V-0
Special Features
Higher Temperature Rated Conductors Permitted with Appropriate Derating
Line Side Connection Type
Lug
Maximum Voltage
600 V
Secondary Wire Range
12 to 10 AWG Cu, 14 AWG Cu, 14 to 6 AWG Cu, 3 to 1/0 AWG, 3 to 2 AWG, 4 AWG Cu, 6 AWG Cu, 6 to 4 Al, 6 to 4 AWG, 8 AWG, 8 AWG Cu, 8 to 4 AWG Al, 8 to 6 AWG Al

Description

POWER DISTRIBUTION BLOCK
