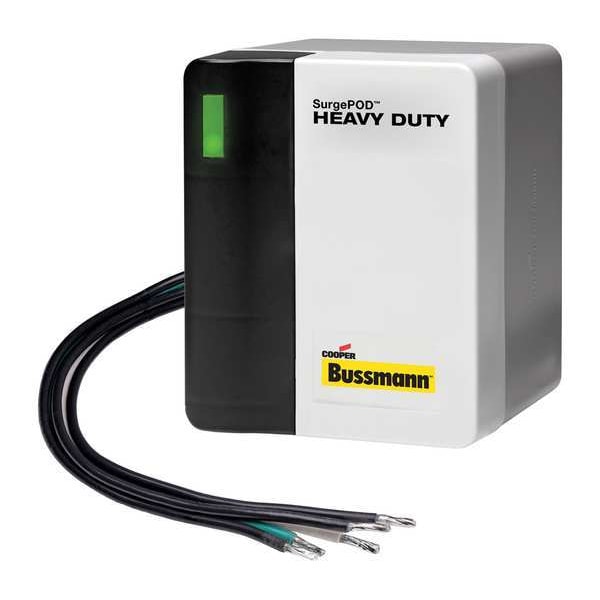

Eaton Bussmann Surge Protection Device, 3 Phase, 120/240VAC High Leg Delta, 4 Poles, 4 SPH50SP4240HLG

Surge Protection Device, 3 Phase, 120/240VAC High Leg Delta, 4 Poles, 4 (Discontinued)

  • Mfr # SPH50SP4240HLG
  • Zoro # G6199663
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SPH50SP4240HLG
Zoro #
G6199663
UPC #
051712403610
Country of Origin
Mexico

Dimensions

Length
3.38"
Depth
3.19"
Width
4.13"
Length (Straight Wireway)
3.38 in

Details

Item
Surge Protection Device
Mounting Style
Chase Nipple/Panelboard
Phase
3
Voltage
120/240VAC High Leg Delta
Number of Poles
4
Voltage Protection Rating
700/1200V (L-N, N-G), 2500/3000V (L-G, L-L)
Number of Wires
4
Modes of Protection
L-G, L-L, L-N, N-G
Max. Surge Current per Mode
50kA
Max. Surge Current per Phase
50kA
Nominal Discharge Current
20kA
Short Circuit Current Rating
200kA
Modular
No
Filtering
No
Max. Continuing Operating Voltage
150/320 V AC
Enclosure NEMA Rating
4X
Enclosure Material
Thermoplastic
Wire Gauge
10 AWG
Includes
LED Status Indicator
Filtering / Nonfiltering
Nonfiltering
Standards
UL 1449 3rd Edition
Modular / Nonmodular
Nonmodular

Description

Surge Protection Device, Depth 3.19 in, Enclosure Material Thermoplastic, Enclosure NEMA Rating 4X
