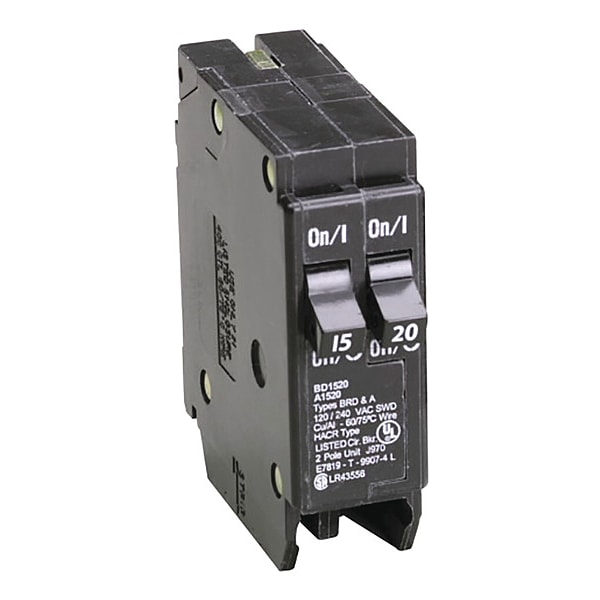

Circuit Breaker, BD Series, 15/20A, 1 Pole, 120V AC, 10kA
Mfr # BD1520
Zoro # G3633529
CAD Available
product price: $33.79
/eaKey Features
CAD Drawing
Series
BD
Number of Poles
1
AC Voltage Rating
120V AC
Circuit Breaker Type
Tandem
Phase
1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
BD1520
Zoro #
G3633529
UPC #
786676369107
Country of Origin
Dominican Republic
Dimensions
Width
1 in
Depth
2.90 in
Height
2.60 in
Min. Wire Size
14 AWG
Max. Wire Size
4 AWG
Wire Size
#14-4 AWG Cu/Al
Length
3.2 in
Description
Circuit Breaker, Amps 15/20 A, AC Voltage Rating 120V AC, Circuit Breaker Type Tandem, Number of Poles 1, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series BD, Phase Single, Series BD, Max. AIR Rating 10kA at 120V AC, For Use With Type BR Loadcenters, Length 3.2 in, Width 1 in, Depth 4 in, Min. Wire Size 14 AWG, Max. Wire Size 4 AWG, Standards UL 489, Federal Specifications Classification W-C375
