  5. Circuit Breaker, BR Series, 40A, 4 Pole, 120/240V AC, 10kA

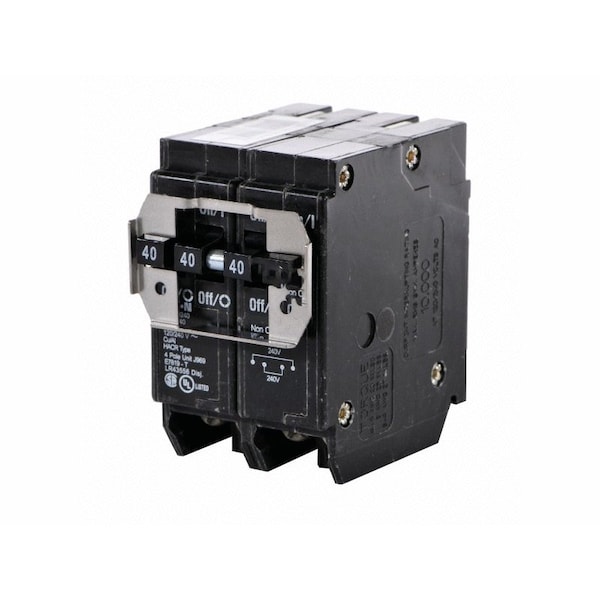

Eaton Circuit Breaker, BR Series, 40A, 4 Pole, 120/240V AC, 10kA BQ240240 - main

CAD Drawings

Download CAD Files

Circuit Breaker, BR Series, 40A, 4 Pole, 120/240V AC, 10kA

  • Mfr # BQ240240

  • Zoro # G908568128

CAD Available
product price:  $109.79
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Series
BR
Number of Poles
4
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Thermal Magnetic
Circuit Breaker Mounting Style
Plug In
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BQ240240
Zoro #
G908568128
UPC #
786676371155
Country of Origin
United States

Dimensions

Width
2 in
Depth
3 in
Height
3 in
Frame Size
BQ

Details

Item
Circuit Breaker
Series
BR
Amps
40A
Number of Poles
4
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Thermal Magnetic
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA
Trip Type
Independent
DC Voltage Rating
Not Rated
CAD Available
Yes

Description

Circuit breakers protect the wires in your home from overheating referred to as an overload and fault currents referred to as short circuits. Quadplex or Quad type Circuit Breaker is designed to create 4 circuits in 2 spaces. This allows for 240-Volts circuits. The BQ style breaker has an independent trip as well as a rejection tab feature. These breakers are designed for use in BR type load centers and should be installed only in panel positions that have notched bus stabs that accommodate the rejection clip. In addition, BQ circuit breakers are UL approved genuine replacement breakers for load centers made by Westinghouse, Challenger and Bryant.
  • Amperage two 2-pole 40 Amp
  • Number of poles - 4
  • Trip type - independent
  • For use in type BR load centers
  • Interrupt rating - 10 kAIC
  • Voltage rating is 120/240-Volt
  • Wire size - #14-4 AWG Cu/Al at 60C or 75C
  • Carry listing for HACR applications
  • Breaker has a rejection tab feature
