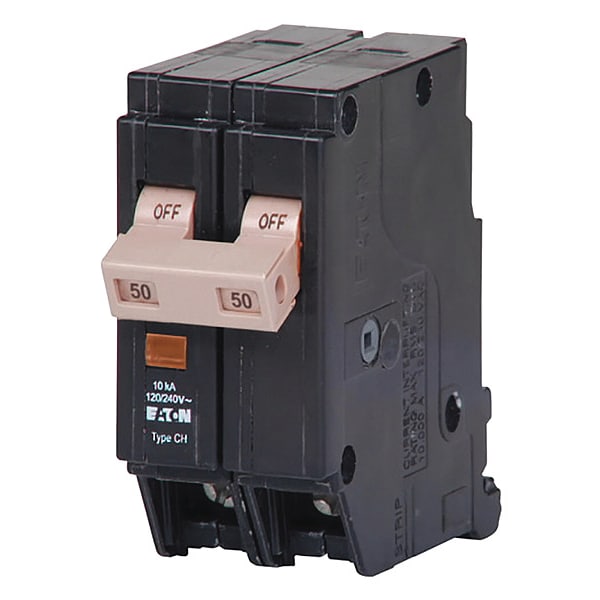

Circuit Breaker, CH Series, 50A, 2 Pole, 120/240V AC, 10kA
Mfr # CHF250
Zoro # G3631937
CAD Available
product price:Â
$
36.89
/ea
Key Features
CAD Drawing
Series
CH
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CHF250
- Zoro #
- G3631937
- UPC #
- 786685532172
- Country of Origin
- Dominican Republic
- CAD Available
- Yes
- Item
- Circuit Breaker
- Series
- CH
- Amps
- 50A
- Number of Poles
- 2
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Standard
- Phase
- 1
- Circuit Breaker Actuator
- Toggle
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA
- Trip Type
- Trip Flag
- DC Voltage Rating
- Not Rated
- For Use With
- Type CH Loadcenters
- Standards
- UL 489, HACR Rated
- Interrupt Rating
- 10 kA
- Compatible Panelboard/Load Center Series
- CH
- Certifications
- UL 489
- Compliances
- HACR Rated
Description
Circuit Breaker, Amps 50 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series CH, Phase Single, Series CH, Max. AIR Rating 10kA at 120/240V AC, For Use With Type CH Loadcenters, Length 1.5 in, Width 1.5 in, Depth 2.6 in, Min. Wire Size 10 AWG, Max. Wire Size 1/0 AWG, Standards UL 489, HACR Rated
