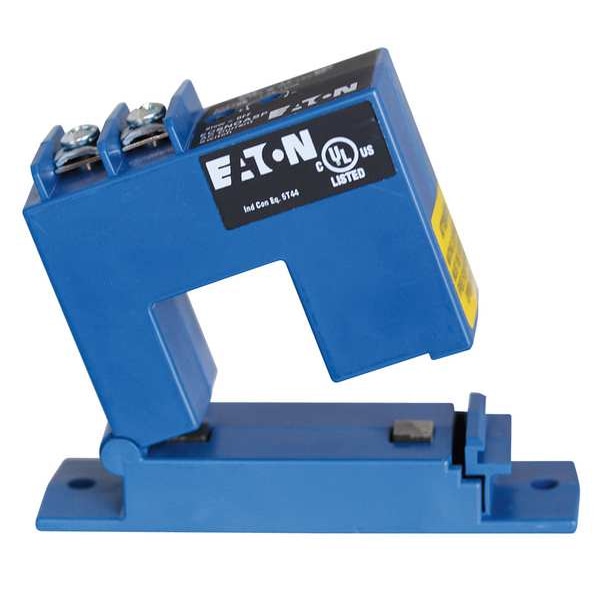

Current Sensing Relay, 1.5A, Self Powered

  • Mfr # ECSNCFSP

  • Zoro # G2596119

product price:
$
153.99
/ea
Free Shipping & Returns

Key Features

Input or Control Voltage
Self Powered
AC Contact Rating - Relay
0.20A @ 135V
DC Contact Rating - Relay
0.20A @ 135V
Mounting - Relay
Surface
Contact Form - Relay
SPST-NC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ECSNCFSP
Zoro #
G2596119
UPC #
786685120416
Country of Origin
United States

Dimensions

Body Height - Relay
2.25 in
Body Depth - Relay
1.19 in
Overall Height - Relay
2.5 in
Body Width - Relay
3.53 in
Sensing Hole Diameter
0.85 in
Body Height
3.53 in
Body Depth
2.25 in
Body Width
1.19 in
Overall Depth
2.25 in
Product Length/Depth
2.25 in
Product Width
1.19 in
Product Height
3.53 in

Details

Item
Current Sensor Relay
Input or Control Voltage
Self Powered
AC Contact Rating - Relay
0.20A @ 135V
DC Contact Rating - Relay
0.20A @ 135V
Mounting - Relay
Surface
Contact Form - Relay
SPST-NC
Sensing Amp Range
1.75 to 150.00A
Trip Point
1.50 A
Trip Delay
0.12 sec
Core Type - Relay
Split
Mounting
Surface
Type of Output
Solid State
Max. Inrush Current
1.5 A
Sensor Opening
0.85 in
Contact Form
SPST-NC
Core Type
Split
Status Indicator
No Indicator
Item - Relay
Current Sensing Relay
Electrical Connection
Screw Terminal
Contact Amps
0.20A
Input or Control Voltage Range
Self Powered
Maximum Operating Temperature
122 Degrees F
Trip Point Type
Fixed
For Use With
Sensors
Current Rating
150 A
Contact Rating (DC)
0.2 A @ 135V
Monitored Parameters
Overcurrent, Undercurrent
Weight
0.25 lb
Housing Material
Plastic
Minimum Operating Temperature
-58 Degrees F
Mounting Style
Surface
Number of Pins
2
Standards
RoHS Compliant, UL Listed
Frequency
100 Hz
Adjustment Method
Switch
Operating Current
0.2 A, 150 A
Wire Gauge
14 AWG
Contact Rating (AC)
0.2 A @ 135V
Contact configuration
Isolated solid state relay
LED indicator
None
Enclosure material
UL94 V0 flammability rated plastic
Operating Temperature
-58° to 122°F (-50° to 50°C)
Switch type
Current switch
Contact Rating
0.2A at 135 Vac/DC
AC current - max
150 A monitor, 0.2 A switch
Connection
Screw terminal
Product Name
Eaton ECS series CurrentWatch AC current switch

Description

Current Sensor Relay, Contact Form SPST-NC, Contact Rating (AC) 0.2 A @ 135V, Contact Rating (DC) 0.2 A @ 135V, Core Type Split, Current Rating 150 A, Input Voltage Not Applicable, Monitored Parameters Overcurrent, Undercurrent, Mounting Style Surface, Number of Pins 2, Trip Point 1.50 A, Trip Point Type Fixed, Adjustment Method Switch, Electrical Connection Screw Terminal, Sensing Hole Diameter 0.85 in, Status Indicator No Indicator, Wire Gauge 14 AWG, Body Depth 2.25 in, Body Height 3.53 in
