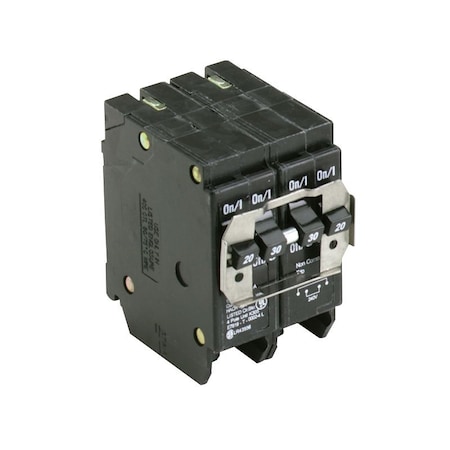

Circuit Breaker, BQ Series, 20 to 30A, 4 Pole, 120/240V AC, 10kA (Discontinued)
- Mfr # BQ220230
- Zoro # G404351019
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
BQ220230
Zoro #
G404351019
UPC #
786676370806
Country of Origin
United States
Dimensions
Width
2 in
Depth
3 in
Height
3 in
Min. Wire Size
14 AWG (Cu/Al)
Max. Wire Size
4 AWG (Cu/Al)
Details
Item
Circuit Breaker
Series
BQ
Amps
20 to 30A
Number of Poles
4
AC Voltage Rating
120/240V AC
Circuit Breaker Mounting Style
Plug On
Max. AIR Rating
10kA
Trip Type
Independent
DC Voltage Rating
Not Rated
Features
Rejection Tab Feature
For Use With
Type BR Loadcenters
Interrupt Rating
10 kA
Description
CTL Quadplex breaker with rejection tab, 2-pole outer independent trip and 2-pole center independent trip. Requires two 1 in spaces, Wire size range #14-4, 120/240 VAC.9 lb weight, 3 in x 2 in x 3 in. UL listed, Meets UL 489. Listing for HACR applications. Meets Federal Spec classification W-C375. 120/240 V, 10,000 AIC interrupting capacity,.
