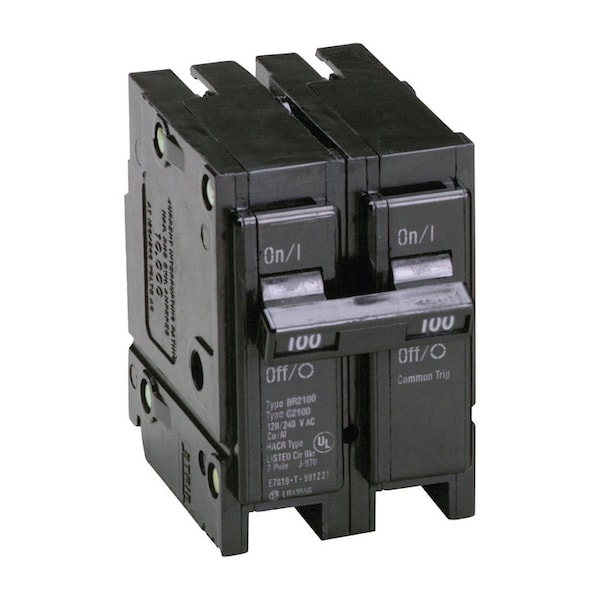

Circuit Breaker, BR Series, 100A, 2 Pole, 120/240V AC, 10kA
Mfr # BR2100
Zoro # G8661610
CAD Available
product price: $82.65
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Series
BR
Amps
100A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Mounting Style
Plug In
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
BR2100
Zoro #
G8661610
UPC #
786676363259
Country of Origin
Dominican Republic
Dimensions
Width
2 in
Depth
1.90 in
Height
2.40 in
Max. Wire Size
1/0 AWG (Cu/Al)
Min. Wire Size
4 AWG (Cu/Al)
Wire Size
#4-1/0 AWG Cu/Al
Frame Size
BR
Details
CAD Available
Yes
Item
Circuit Breaker
Series
BR
Amps
100A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA
Trip Type
Common
DC Voltage Rating
Not Rated
For Use With
Type BR Loadcenters
Standards
UL 489
Interrupt Rating
10 kA
Compliances
Federal Specifications Classification W-C375
Special Features
Used with Type BR Loadcenters
Description
Eaton BR circuit breaker for NLC load centers. Plug-on type featuring a common trip. 120/240 volt. For BR series panels. UL (Underwriter's Laboratories) listed.
- • Double Pole
- • Heating and AC Rated (HACR)
- • Visual Trip Position
- •
- •
