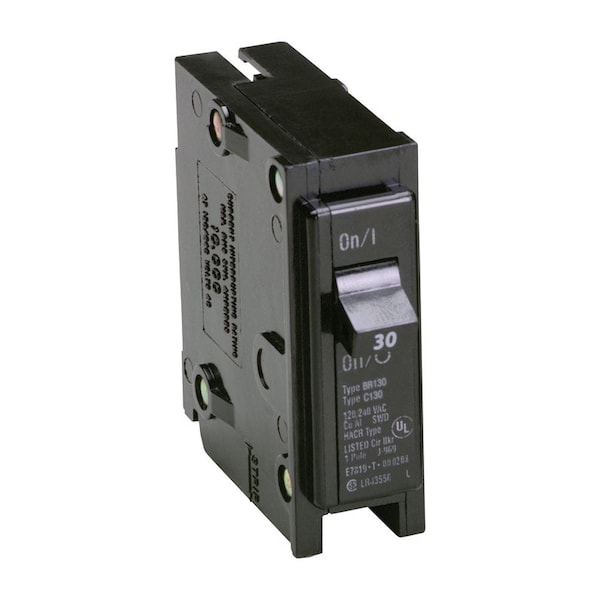

Circuit Breaker, BR Series, 30A, 1 Pole, 120/240V AC, 10kA
Mfr # BR130
Zoro # G8654988
CAD Available
product price: $13.89
/eaKey Features
CAD Drawing
Series
BR
Amps
30A
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Mounting Style
Plug In
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
BR130
Zoro #
G8654988
UPC #
786676362207
Country of Origin
Dominican Republic
Dimensions
Width
1 in
Depth
3 in
Height
3 in
Min. Wire Size
14 AWG (Cu/Al)
Max. Wire Size
4 AWG (Cu/Al)
Wire Size
#14-4 AWG Cu/Al
Frame Size
BR
Details
Item
Circuit Breaker
Series
BR
Amps
30A
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA
Trip Type
Thermal Magnetic
DC Voltage Rating
Not Rated
Interrupt Rating
10 kA
For Use With
Type BR Loadcenters
Standards
UL 489
Compliances
Federal Specifications Classification W-C375
CAD Available
Yes
Description
The Eaton cutler-hammer 30 amp 1 inch single-pole type BR replacement Circuit Breaker is designed to protect house wires from overheating or causing a short-circuit. Single pole breaker applications include use lighting fixtures. The UL-listed breaker is compatible with Westinghouse, challenger and Bryant load centers and has a maximum load of 240 volt.
- • Single Pole
- • Heating and AC Rated (HACR)
- • Visual Trip Position
- • 1" Format
- • 1" Format
- •
