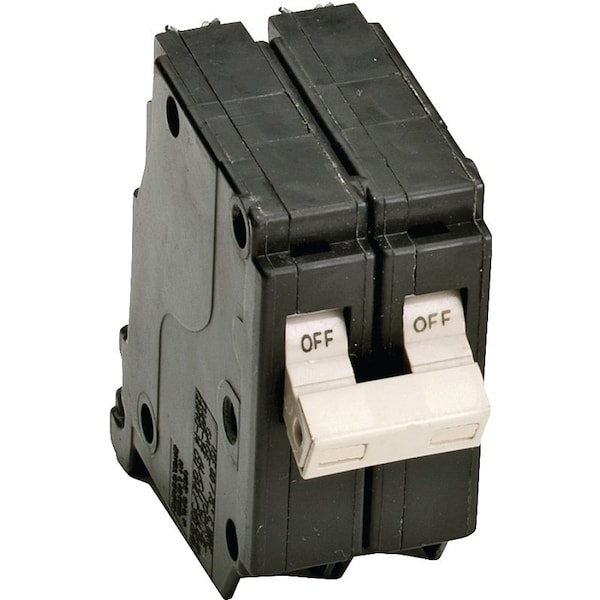

Circuit Breaker, CHF Series, 15A, 2 Pole, 120/240V AC, 10kA
Mfr # CHF215
Zoro # G907449978
product price:Â $42.23
/eaKey Features
Series
CHF
Amps
15A
Number of Poles
2
AC Voltage Rating
120/240V AC
Max. AIR Rating
10kA
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
CHF215
Zoro #
G907449978
UPC #
786685361871
Country of Origin
United States
Dimensions
Width
1-1/2 in
Depth
1-1/2 in
Height
2.60 in
Min. Wire Size
(2) 14 AWG (Cu/Al)
Max. Wire Size
(2) 10 AWG (Cu/Al)
Frame Size
CHF
Details
Item
Circuit Breaker
Series
CHF
Amps
15A
Number of Poles
2
AC Voltage Rating
120/240V AC
Max. AIR Rating
10kA
Trip Type
Trip Flag
DC Voltage Rating
Not Rated
For Use With
Type CH Loadcenters
Interrupt Rating
10 kA
Standards
UL 489, HACR Rated
Circuit Breaker Actuator
Trip Free Handle
Circuit Breaker Type
Standard
Description
Quick make, quick break switch, inverse time element tripping operation and trip free handle Thermalmagnetic trip curve 14 8 wire range 15 to 30 amp, 14 2 wire range 40 to 70 amp, 10 10 wire range 100 amp UL Listed, HACR rated, meets NEMA standards and federal specifications, CSA certified 120240 volt 10,000 AIR 34 per pole
