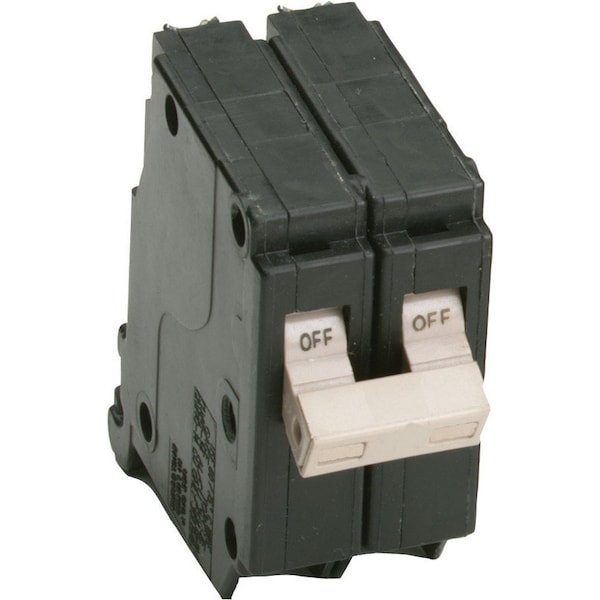

Circuit Breaker, CHF Series, 50A, 2 Pole, 120/240V AC, 10kA
Mfr # CHF250
Zoro # G3209128
CAD Available
product price: $33.39
/eaKey Features
CAD Drawing
Series
CHF
Amps
50A
Number of Poles
2
AC Voltage Rating
120/240V AC
Max. AIR Rating
10kA
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CHF250
Zoro #
G3209128
UPC #
786685532172
Country of Origin
United States
Dimensions
Width
3/4 in
Depth
1-1/2 in
Height
2.60 in
Min. Wire Size
10 AWG Cu/Al
Max. Wire Size
1/0 AWG (Cu/Al)
Wire Size
#10-1/0 AWG Cu/Al
Frame Size
CHF
Details
Item
Circuit Breaker
Series
CHF
Amps
50A
Number of Poles
2
AC Voltage Rating
120/240V AC
Max. AIR Rating
10kA
Trip Type
Trip Flag
DC Voltage Rating
Not Rated
Interrupt Rating
10 kA
Standards
UL 489, HACR Rated
For Use With
Type CH Loadcenters
Compliances
HACR Rated
Certifications
UL 489
CAD Available
Yes
Circuit Breaker Type
Standard
Description
The primary function of a circuit breaker is to protect the wire from overheating referred to as an overload and fault currents referred to as short circuits. Circuit breakers replaced fuses because they can be reset. The CHF is a new and improved version of Eaton’s premium family of Type CH breakers. The CHF series of breakers will have a flag that visually confirms Tripped status and exclusive Trip to OFF/1-Step Reset, which further establishes the CH series of products as best in class.
- • 50 Amp, 2 Pole, Circuit Breaker
- • Heating and AC Rated (HACR)
- • Trip Flag Indicator
- • 3/4" Format
- •
