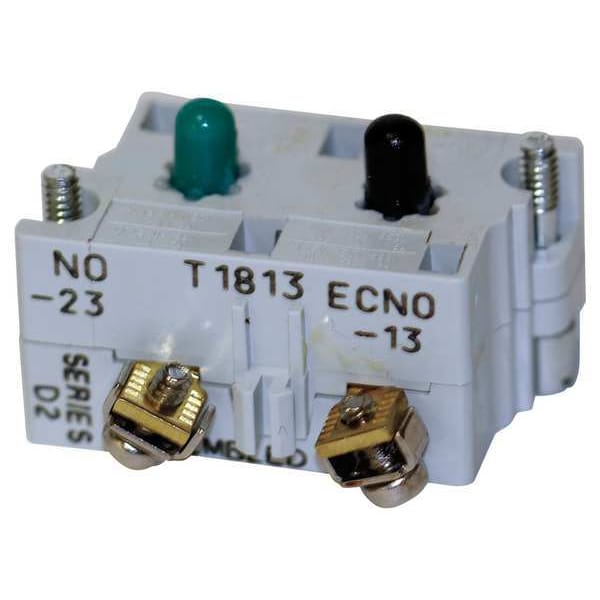

Cutler-Hammer Contact Block, 1NO Early Close/1NO, 30mm

Mfr # 10250T57
Zoro # G5221745

73.89

Key Features

Voltage

660VAC/VDC

Color

Black

For Use With

Eaton 10250T 30mm Push Buttons and Indicating Lights

Size

30 mm

NEMA Contact Rating Designation

A600/P600

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 10250T57
Zoro #: G5221745
UPC #: 786680123887
Country of Origin: Dominican Republic

Dimensions

Size: 30 mm
Product Height: 2.2 in
Product Length/Depth: 1.9 in
Product Width: 1.3 in
Connection Size: 30 mm
Manufacturer Warranty Length: 1 yr

Details

Item: Contact Block
Voltage: 660VAC/VDC
Color: Black
For Use With: Eaton 10250T 30mm Push Buttons and Indicating Lights
NEMA Contact Rating Designation: A600/P600
Contact Rating: 10A @ 660V AC/DC
Contact Form: 1NO Early Close/1NC Late Open
Standards: CE, CSA, UL Listed
Application: Operator
Action: Momentary
Terminal Connection: Pressure Terminal
Type: 30.5 mm, Heavy-Duty
Certifications: CSA Certified
Rating: NEMA 3
Compliances: CE Marked
Contact configuration: 1 LONC-1 ECNO (special function)
Series: 10250T
Terminals: Pressure
Product Name: Eaton 10250T pushbutton contact block
Includes Mounting Block: Mounting Block Included
Compatible Operator: Push Button
DC Contact Rating: 10 A @ 600 V
Terminal Connection Type: Screw Clamp Terminals
Compatible with Series: 10250T, E34
AC Contact Rating: 10 A @ 660 V
Switch Action: Momentary

Description

Contact Block, Contact Form 1NO Early Close/1NC Late Open, Contact Rating 10A @ 660V AC/DC, For Use With Eaton 10250T 30mm Push Buttons and Indicating Lights, Action Momentary, 30 mm, Application Operator, NEMA Contact Rating Designation A600/P600, Color Black, Terminal Connection Pressure Terminal, Standards CE, CSA, UL Listed
