Shop EATON CUTLER-HAMMER

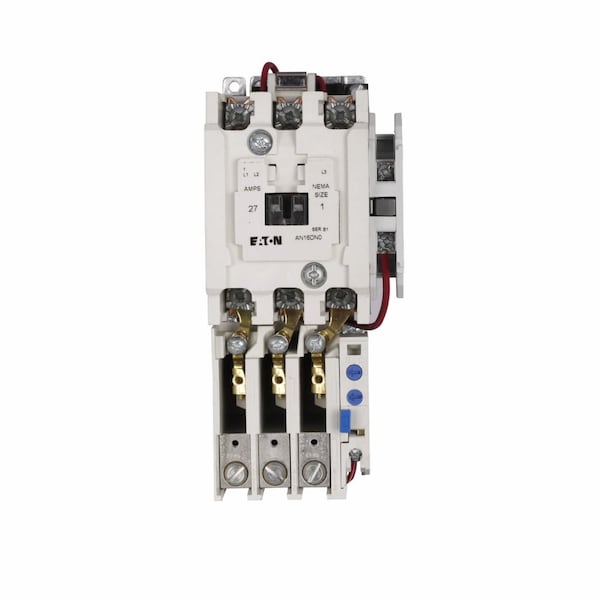

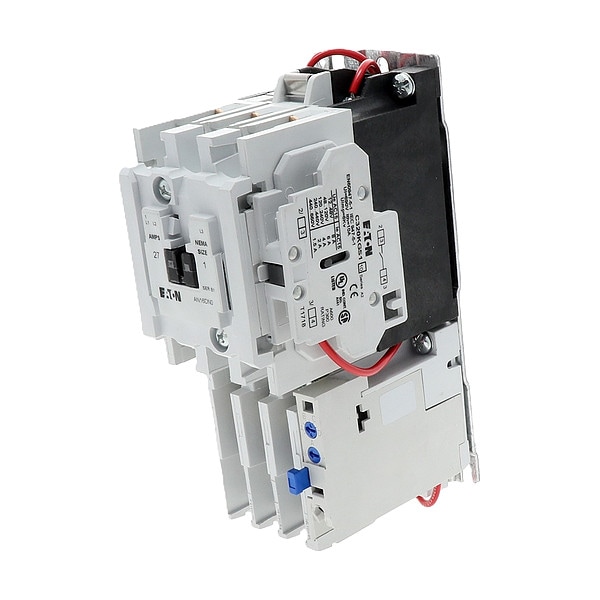

Contactor, 120V 3P Nema1 3Ph Motor Strtr

  • Mfr # AN16DN0AB

  • Zoro # G4047957

product price:  $764.65
/ea
Free Shipping & Returns

Key Features

Phase
Three
Standards
CSA Certified, UL Listed
Overall Height
3.31 in
Overall Width
4.38 in
Horsepower @ Three Phase - 480V AC
10 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AN16DN0AB
Zoro #
G4047957
UPC #
-
Country of Origin
Dominican Republic

Dimensions

Overall Height
3.31 in
Overall Width
4.38 in
NEMA Size
1
Mounting Hole Distance - Height
6.63 in
Overall Depth
4.61 in
Mounting Hole Distance - Width
2 in
Frame Size
S1

Details

Item
IEC Magnetic Motor Starter
Phase
Three
Standards
CSA Certified, UL Listed
Horsepower @ Three Phase - 480V AC
10 hp
Frequency
50/60 Hz
Horsepower @ Single Phase - 240V AC
3 hp
Reversing Capability
Non-Reversing
Starter Style
NEMA
Trip Class
10/20
Operator
None
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Maximum Voltage Rating
600V AC
Current AC
27 A
Number of Poles
3
Horsepower @ Three Phase - 600V AC
10 hp
Includes Auxiliary Contacts
Yes
Horsepower @ Single Phase - 120V AC
2 hp
Overload Protection Type
Thermal
Horsepower @ Three Phase - 208V AC
7 1/2 hp
Mounting Postion
Horizontal
Auxiliary Contact Module Capacity
1
Coil Voltage
110/120V AC
Mounting Style
Bracket
Auxiliary Contact Form
1NO
Mechanical Operating Durability
3,000,000
Series
Freedom
Number of Auxillary Contacts
1

Description

IEC Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting Not Applicable, Overload Protection Type Thermal, Minimum Overload Relay Current Setting Not Applicable, Trip Class 10/20, Series Freedom, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Operator None, Operator Function Not Applicable, Mounting Style Bracket, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC
