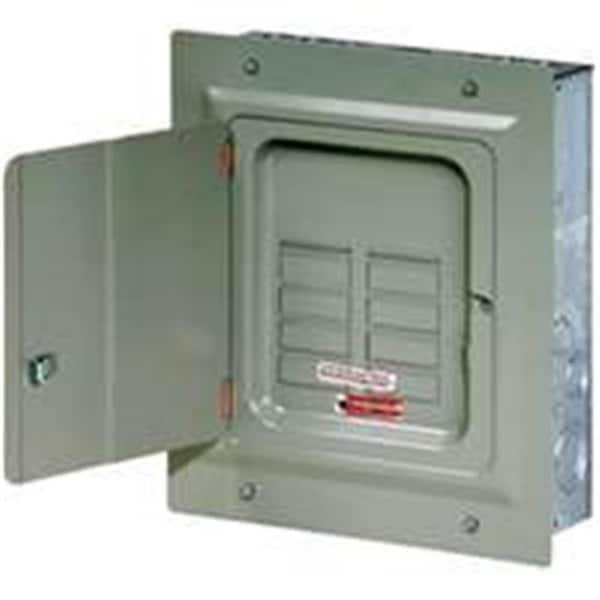

Load Center, 6 Spaces, 125A Amps, 120/240V AC
Mfr # 6800346
Zoro # G504009186
Key Features
Specifications
Product Information
Dimensions
Details
Description
Steel enclosure. Single phase, 3 wire, insulated/bondable neutral, 6 (1 in.) spaces, 12 poles, 120/240 volt. Furnished with door; no. Gbk10 ground bar sold separately. Tin-plated aluminum bus bar. In accordance with nec, suitable for use as service equipment when not more than 6 service disconnecting mains are provided and when not used as a lighting and appliance panel board. Neutral is movable to other side. When bonded, unused neutral connections may be used for equipment ground protectors in service entrance application. Number 14 - Number 1 awg wire range. Electrostatic powder coat, baked urethane painted. Rotate 180 degrees for bottom feed.
Features- Indoor - Nema 1 - Top feed
- Type br - Flush mount
- Amp rating - 125
- Dimension - 15.5 x 12.5 x 5.5 in.
- Item weight - 10.5 lb.
