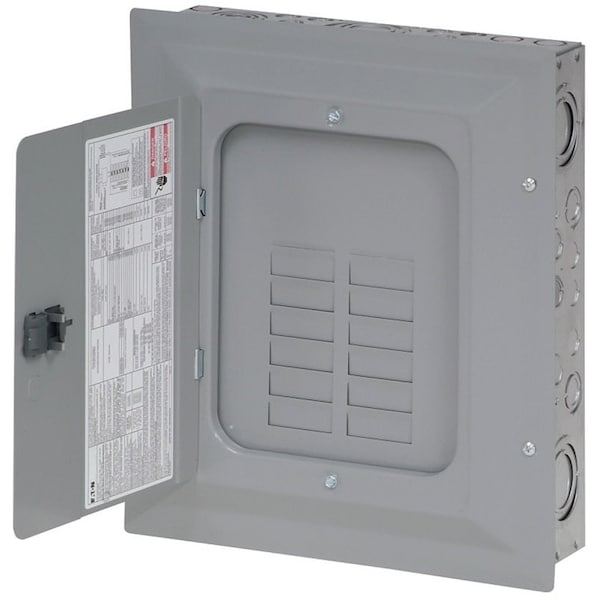

Load Center, BRP, 12 Spaces, 125A, 120/240V AC, Main Lug, 1 Phase
Mfr # BRP12L125G
Zoro # G904258108
product price:Â $96.65
/eaKey Features
Main Circuit Breaker or Main Lug
Main Lug
Number of Spaces
12
Amps
125 A
Voltage
120/240V AC
Phase
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BRP12L125G
- Zoro #
- G904258108
- UPC #
- 786689053000
- Country of Origin
- United States
Dimensions
- Height
- 3.88 in
- Width
- 14.31 in
- Depth
- 16-3/4 in
- Min. Wire Size
- #6
- Max. Wire Size
- 2/0 AWG Cu/Al
Details
- Item
- Load Center
- Main Circuit Breaker or Main Lug
- Main Lug
- Number of Spaces
- 12
- Amps
- 125 A
- Voltage
- 120/240V AC
- Phase
- 1
- Short Circuit Current Rating
- 10kA
- Series
- BRP
- Included Enclosure Cover
- Cover Included
- Enclosure Material
- Metallic
- Enclosure NEMA Rating
- NEMA 1
- Bus Material
- Aluminum
- Mounting Style
- Surface, flush
- Standards
- UL 67
- Weight
- 16.1 lb
- Number Of Poles
- Single-pole
- Number of wires
- Two hots, neutral and ground
- Used with
- Type BR 1-inch breakers
- Number Of Circuits
- 24
Description
Load Centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
