  15. Cutler-Hammer Non-Illuminated Push Button, 30mm, Green

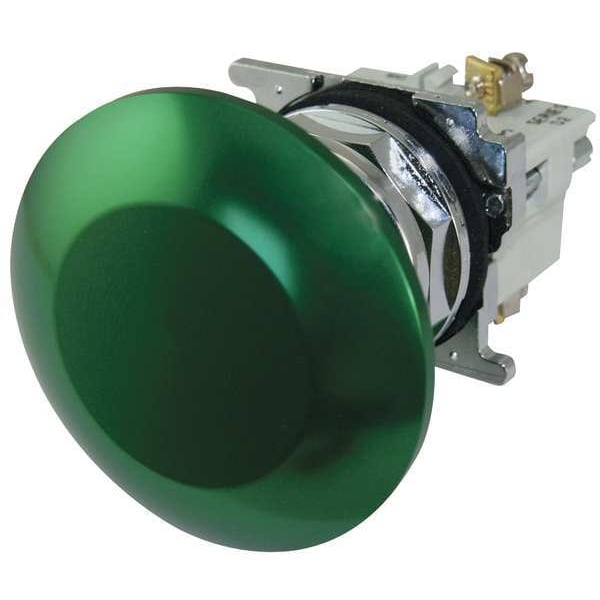

Eaton Cutler-Hammer Non-Illuminated Push Button, 30mm, Green 10250T27G - main

Cutler-Hammer Non-Illuminated Push Button, 30mm, Green

  • Mfr # 10250T27G

  • Zoro # G5270255

product price: $186.99
/ea
Free Shipping & Returns

Key Features

Material
metal
Color
Green
Standards
CE, CSA, UL Listed
Features
Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Terminal Connection
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250T27G
Zoro #
G5270255
UPC #
786680119576
Country of Origin
United States

Dimensions

Size
30 mm
Product Length/Depth
1 in
Product Height
1 in
Product Diameter
2.5 in
Product Width
1 in
Overall Depth
1 in
Mushroom Head Diameter
65 mm
Overall Height
1 in
Panel Cutout Diameter
30 mm
Overall Width
1 in
Manufacturer Warranty Length
1 yr

Details

Item
Mushroom Head Push Button
Material
metal
Color
Green
Standards
CE, CSA, UL Listed
Features
Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Terminal Connection
Screw Clamp
Action
Momentary
Number of Operators
1
Type of Operator
65mm Mushroom Head
Contact Form
1NO
Head Material
Metal
Legend
No Legend
Contact Rating
10A @ 600V AC
IP Rating
IP65
Bezel
Chrome Plated Zinc Die Cast
NEMA Rating
12, 13, 3, 3R, 4, 4X
Basic Material
Metal
Product Type
Push Button Operators
Bezel Material
Chrome Plated Zinc Die Cast
Type
Pushbutton
Series
10250T
Actuator
Jumbo mushroom
Operating Mode
Momentary
Degree of protection
NEMA 3
Illumination
Non-illuminated
Actuator color
Green
Actuator material
Anodized aluminum
Compliances
CE Marked
Rating
NEMA 3
Bus material
Zinc die cast
Certifications
CSA Certified
Contact configuration
1 NO
Product Name
Eaton 10250T pushbutton
Mechanical Operating Durability
1.00 x 10^7
DC Contact Rating
5 A @ 250 V
Push Button Style
Mushroom Head
Operator Voltage Rating - Maximum
120 V AC/DC
Operating Temperature - Minimum
1 Degrees F
Operating Temperature - Maximum
150 Degrees F
Resistance Properties
Oil and Grease Resistant, Watertight
Head Color
Green
Number of Indicator Lights
0
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Operator Material
Metal
AC Contact Rating
10 A @ 600 V
Operator Illumination
Non-Illuminated

Description

Mushroom Head Push Button, 30 mm, Momentary Action, 65mm Mushroom Head Type of Operator, Head Material Metal, Contact Form 1NO, Bezel Chrome Plated Zinc Die Cast, Color Green, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Legend No Legend, Standards CE, CSA, UL Listed, Terminal Connection Screw Clamp, Features Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs, Material Metal
