  11. Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, 2 m, Bare Wire, 2 Wires, Unshielded

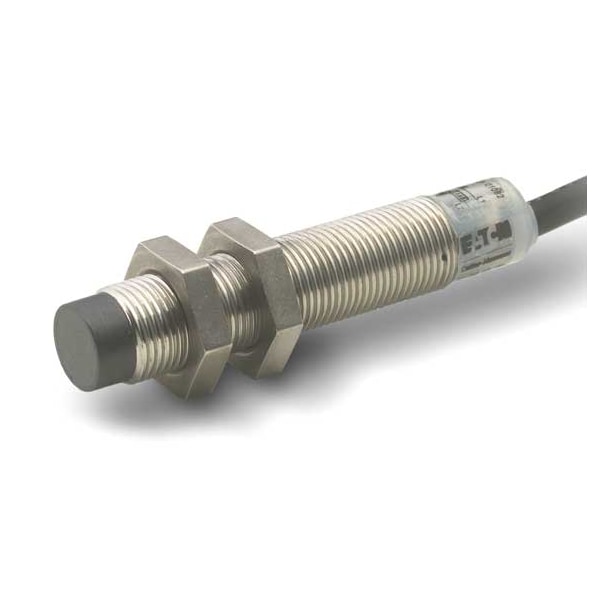

Eaton Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, 2 m, Bare Wire, 2 Wires, Unshielded E57-12LE10-A - main

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, 2 m, Bare Wire, 2 Wires, Unshielded

  • Mfr # E57-12LE10-A

  • Zoro # G0774654

product price: $285.99
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
20 to 132V AC
Length
73 mm
Width
0.47 in
Depth
0.47 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E57-12LE10-A
Zoro #
G0774654
UPC #
-
Country of Origin
Mexico

Dimensions

Length
73 mm
Width
0.47 in
Depth
0.47 in
Product Height
2.87 in
Cable Length
2 m
Overall Height
73 mm
Overall Diameter
12 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
20 to 132V AC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
20 Hz
Operating Temp. Range
-13 Degrees to 158 Degrees F
Standards
CE, CSA, UL Listed
Max. Current Load
250mA
Description/Special Features
360 Degrees Viewable LED Output Indication
Electrical Connection
Bare Wire
Series
E57
Led Indicator
Green power up turns red when output energized
Protection
None
Cable Type
Polyvinyl Chloride (PVC)
Maximum AC Current
300 mA
Environmental Rating
NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Enclosure Material
End bell: polycarbonate;Tube: stainless steel;Front cap: polyphenylene sulfide
Sensor Type
Inductive proximity
Actuator Function
Non-embeddable
Accuracy
< 3% of sensing distance
Contact Rating
300 mA at 132 Vac
Sensing Face Shielding
Unshielded
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
12, 13, 4, 4X, 6, 6P
Operating Temperature - Minimum
-13 Degrees F
Includes Indicator Lights
Indicator Lights Included
Sensing Distance - Maximum
10 mm
DC Voltage Rating
Not Rated
AC Voltage Rating
20-132V AC
Output Circuit Number of Wires
2
Style
Cylindrical, Inductive
Switching Frequency
20 Hz
Load Current - Maximum
250 mA
Electrical Installation Type
Prewired Cable
Body Material
Stainless Steel
Features
Green/Red Indicator
Body Stainless Steel Grade
303
Output Circuit Contact Form
NO
Output Circuit Type
AC-Type

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 20 to 132V AC, Unshielded, Proximity Sensor Operating Frequency 20 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 10 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material 303 Stainless Steel, Length 73 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 250mA
