  11. Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, M12, 3 Wires, Unshielded

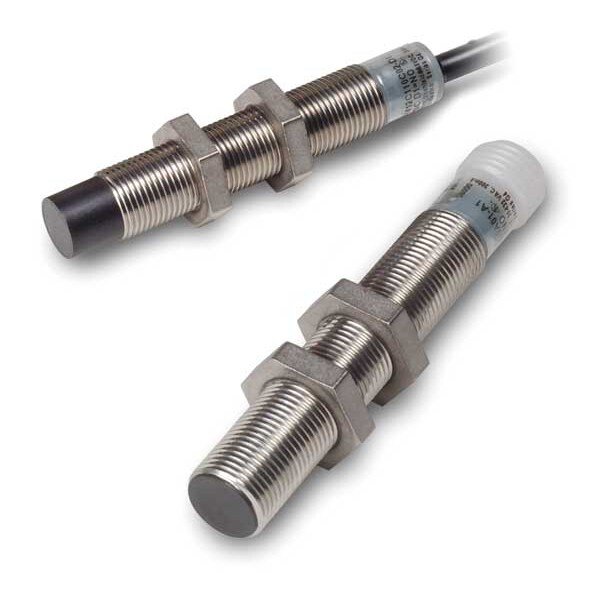

Eaton Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, M12, 3 Wires, Unshielded E59-A12C108D01-CV - main

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Stainless Steel, M12, 3 Wires, Unshielded

  • Mfr # E59-A12C108D01-CV

  • Zoro # G0252987

product price: $295.99
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
15 to 30V DC
Length
77 mm
Width
0.47 in
Depth
0.47 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E59-A12C108D01-CV
Zoro #
G0252987
UPC #
-
Country of Origin
Mexico

Dimensions

Length
77 mm
Width
0.47 in
Depth
0.47 in
Product Height
3.05 in
Overall Diameter
12 mm
Overall Height
78 mm

Details

Item
Inductive Cylindrical Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
15 to 30V DC
Proximity Sensor Electrical Connection
4 Pin Micro DC Connector
Proximity Sensor Operating Frequency
100 Hz
Operating Temp. Range
-40 Degrees to 158 Degrees F
Standards
CE, CSA, UL Listed
Description/Special Features
360 Degrees Viewable LED Output Indication
Electrical Connection
M12
Series
E59
Accuracy
< 20 um after 1 hour warmup
Operating Temperature - Max
158 °F
Enclosure Material
Front cap: polyphenylene sulfide;End bell: polycarbonate;Tube: stainless steel
Protection
Reverse polarity and short circuit
Sensor Type
Inductive proximity;Analog inductive proximity
Environmental Rating
NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Connection
4-pin M12 connector
Body Finish
Nickel Plated
Output Circuit Voltage - Maximum
10 V
Number of Pins
4
Features
Extreme Temperature Resistant, High Output Resolution, High Pressure Resistant, Washdown Resistant
Operating Temperature - Maximum
158 Degrees F
Electrical Installation Type
Direct Connector
Output Circuit Current - Minimum
0 mA
DC Voltage Rating
15-30V DC
Sensing Face Shielding
Unshielded
Style
Cylindrical, Inductive
Sensing Distance - Maximum
8 mm
Output Circuit Type
Analog
Output Circuit Current - Maximum
20 mA
Includes Indicator Lights
No Indicator Lights Included
Output Circuit Number of Wires
3
NEMA Enclosure Rating
12, 13, 4, 4X, 6, 6P
Operating Temperature - Minimum
-40 Degrees F
Body Material
Stainless Steel
Output Circuit Voltage - Minimum
0 V
AC Voltage Rating
Not Rated
Switching Frequency
100 Hz

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 15 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 100 Hz, Proximity Sensor Output Circuit Type 0 to 10V, 0 to 20 mA, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 4 Pin Micro DC Connector, Output Mode 0 to 20mA/0 to 10V, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material Stainless Steel, Length 77 mm
