  11. Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded

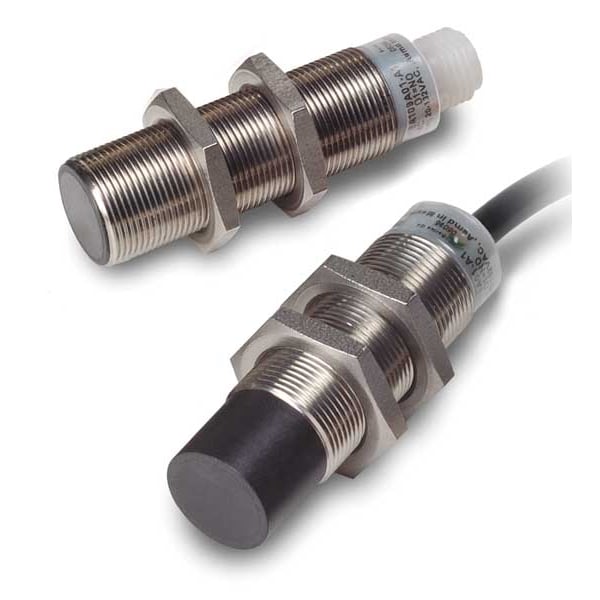

Eaton Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded E59-A18C115C02-CV - main

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, 2 m, Bare Wire, 3 Wires, Unshielded

  • Mfr # E59-A18C115C02-CV

  • Zoro # G1768882

product price: $348.99
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
15 to 30V DC
Length
64 mm
Width
0.71 in
Depth
0.71 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E59-A18C115C02-CV
Zoro #
G1768882
UPC #
-
Country of Origin
Mexico

Dimensions

Length
64 mm
Width
0.71 in
Depth
0.71 in
Product Height
1.8 in
Overall Height
65 mm
Cable Length
2 m
Overall Diameter
18 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
15 to 30V DC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
100 Hz
Standards
CE, CSA, UL Listed
Operating Temp. Range
-40 Degrees to 158 Degrees F
Description/Special Features
360 Degrees Viewable LED Output Indication
Electrical Connection
Bare Wire
Series
E59
Sensor Type
Analog inductive proximity;Inductive proximity
Environmental Rating
NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Enclosure Material
End bell: polycarbonate;Front cap: polyphenylene sulfide;Tube: stainless steel
Accuracy
< 20 um after 1 hour warmup
Cable Type
Polyvinyl Chloride (PVC)
Protection
Reverse polarity and short circuit
Switching Frequency
100 Hz
Output Circuit Voltage - Minimum
0 V
Sensing Face Shielding
Unshielded
Output Circuit Current - Maximum
20 mA
Operating Temperature - Maximum
158 Degrees F
Output Circuit Type
Analog
Body Finish
Nickel Plated
Features
Extreme Temperature Resistant, High Output Resolution, High Pressure Resistant, Washdown Resistant
NEMA Enclosure Rating
12, 13, 4, 4X, 6, 6P
Output Circuit Current - Minimum
0 mA
AC Voltage Rating
Not Rated
Operating Temperature - Minimum
-40 Degrees F
Sensing Distance - Maximum
15 mm
Output Circuit Number of Wires
3
DC Voltage Rating
15-30V DC
Output Circuit Voltage - Maximum
10 V
Body Material
Stainless Steel
Electrical Installation Type
Prewired Cable
Includes Indicator Lights
No Indicator Lights Included
Style
Cylindrical, Inductive

Description

Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 15 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 100 Hz, Proximity Sensor Output Circuit Type 0 to 10V, 0 to 20 mA, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode 0 to 20mA/0 to 10V, NEMA Rating 12, 13, 4, 4X, 6, 6P, IP Rating IP67, IP69K, Case Material Stainless Steel, Length 64 mm, Operating Temp. Range -40 Degrees to 158 Degrees F
