This item is Discontinued.

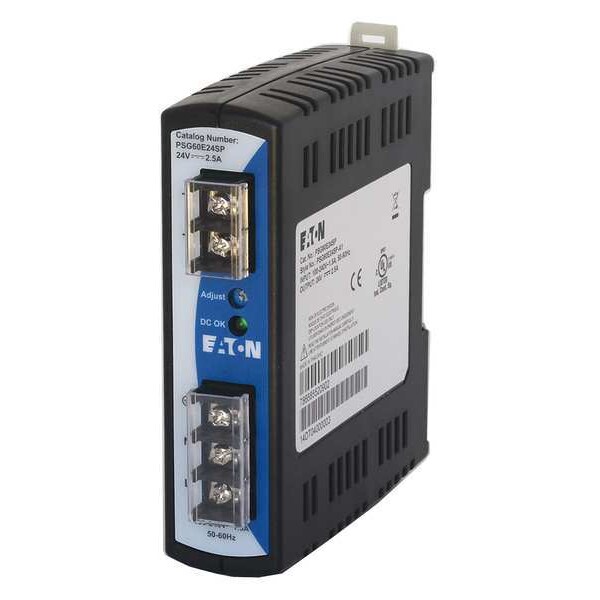

Eaton Dc Power Supply, 100 to 240 V AC, 24V DC, 60W, 2.50, Din Rail PSG60E24SP

Dc Power Supply, 100 to 240 V AC, 24V DC, 60W, 2.50, Din Rail (Discontinued)

  • Mfr # PSG60E24SP
  • Zoro # G8569495
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PSG60E24SP
Zoro #
G8569495
UPC #
786685520902
Country of Origin
Thailand

Dimensions

Height
4.45 in
Width
1.26 in
Depth
4.76 in
Product Height
2 in
Product Width
6.5 in
Product Length/Depth
5.5 in
Overall Depth
5.5 in
Overall Width
6.5 in
Overall Height
3 in

Details

Item
DC Power Supply
Input Voltage
100 to 240V AC
Output Voltage
24V DC
Power Rating
60W
Output Amps
2.50
Mounting
DIN Rail
Case Material
Plastic Case
Phase - Electrical
Single
Style
Switching
Hz
50 to 60 Hz
Peak Amps
3.75
Series
PSG
Hold Up Time
Greater Than 22 msec
Standards
CE, CSA, cUL, cULus/UL 60950-1, EN, German Safety, IEC, RoHS, UL 508
Features
Din Rail Mounting, Industrial Power Supply, Low Output Noise, Overvoltage And Short Circuit Protection, Screw Terminal Connections, Ultra Slim Footprint
IP Rating
IP20
Operating Temp. Range
-20 Degrees to 80 Degrees C
NEMA Rating
1
Output Noise
Less Than 50mV
Status Indicator
LED/DC OK Signal
Temp. Range
-20 to 75°C
Connection
Screw
Terminals
Heavy-duty screw
Enclosure Material
Plastic
Operating Temperature - Max
75 °C
Product Name
Eaton PSG general purpose power supply
Certifications
UL 508;EN Listed;cUL Certified;CSA Certified;IEC Rated;cULus/UL 60950-1
Compliances
German Safety;CE Marked
Phase
Single
Operating Temperature - Min
-20 °C
Power Consumption
60 W
Special Features
Varistor Transient Surge Voltage
Output Voltage - Maximum
24 V DC
Input Frequency - Maximuim
60 Hz
Power Supply Style
Switching
Operating Temperature - Minimum
-4 Degrees F
Output Power - Rated
60 W
Current - Output
2.5 A
Input Frequency - Minimum
50 Hz
Operating Temperature - Maximum
167 Degrees F
Input Frequency - Nominal
50/60 Hz
NEMA Enclosure Rating
1
Wire Connection Type
Screw Terminals
Hold Up Time - Minimum
22 msec
Current - Peak
3.75 A
Output Noise - Maximum
50 mV
Manufacturer Warranty
1 yr Installation, 18 mo Shipment
Housing Material
Plastic

Description

DC Power Supply, Input Voltage 100 to 240V AC, Output Voltage 24V DC, Power Rating 60W, Output Amps 2.50, Mounting DIN Rail, Switching, Case Material Plastic Case, Height 4.45 in, Width 1.26 in, Depth 4.76 in, Series PSG, Hz 50 to 60 Hz, Phase - Electrical Single, Peak Amps 3.75, IP Rating IP20, Output Noise Less Than 50mV, Hold Up Time Greater Than 22 msec, Status Indicator LED/DC OK Signal, NEMA Rating 1
